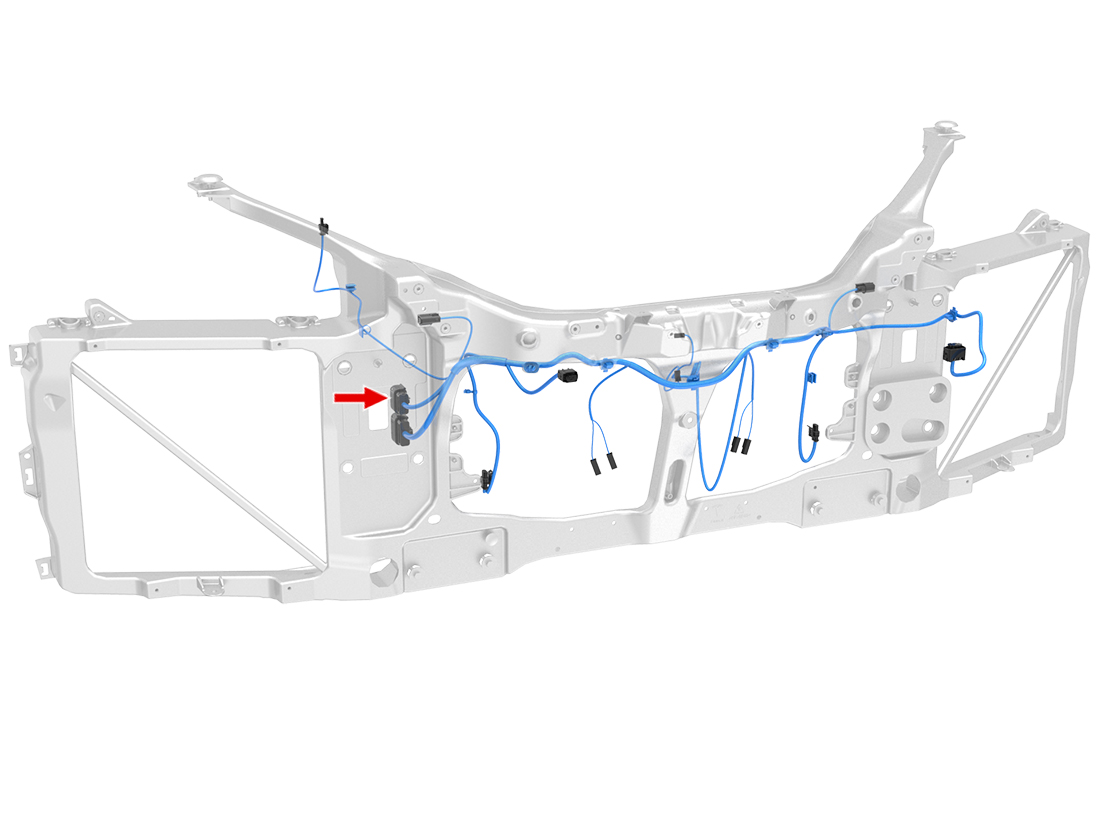

X965F - s-rhd-sop4
Location:
Connector Detail: molex_33472-1601
Gender:
Color: BK
| Cav | Col | Gauge |
|---|---|---|
| 1 | LB | 0.5 |
| 2 | OG | 0.5 |
| 3 | GY | 0.5 |
| 4 | BK | 0.5 |
| 5 | RD | 0.5 |
| 6 | DG | 0.5 |
| 7 | VT | 0.5 |
| 8 | DG | 0.5 |
| 12 | DG | 0.35 |
| 13 | VT | 0.5 |
| 14 | DG/VT | 0.5 |
| 15 | RD | 0.5 |
| 16 | LG/WH | 0.5 |
