G700 - s-rhd-sop5

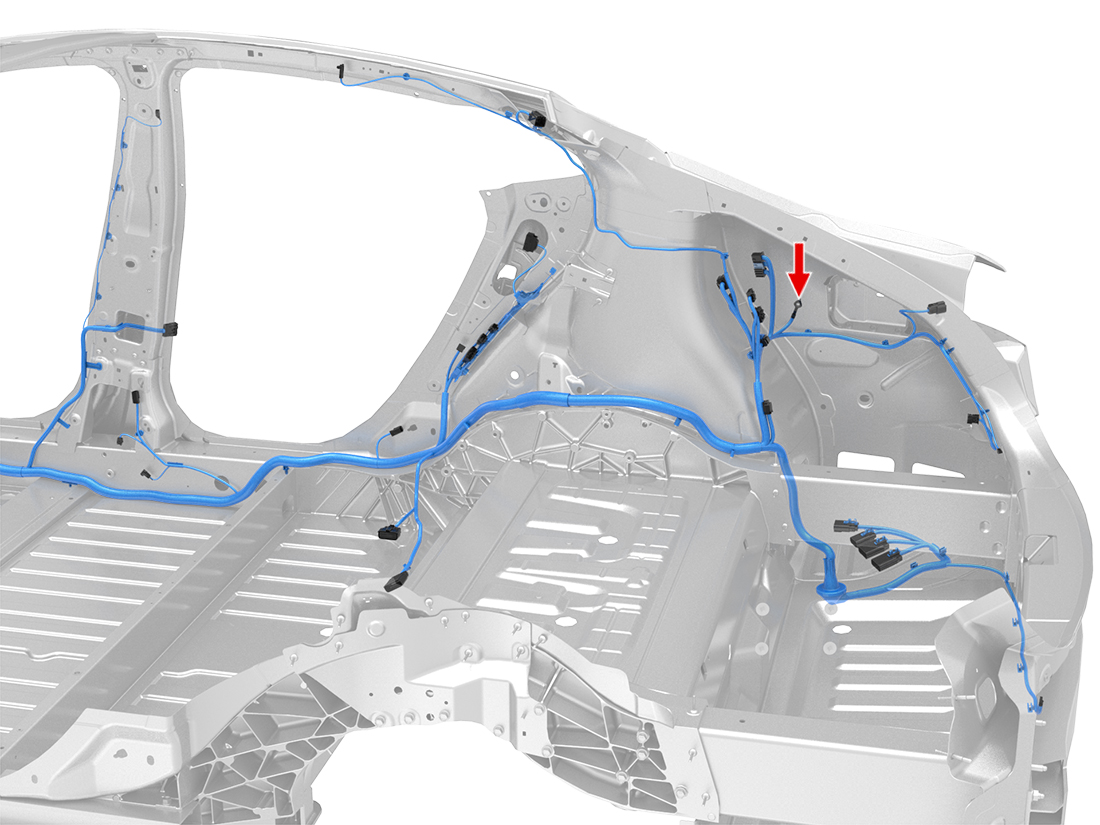

Location:
Connector Detail: gen_gnd-st-usw-m6
Gender: UNSPEC
Color: SN
| Cav | Col | Gauge |
|---|---|---|
| 1 | BK | 0.5 |
| 1 | BK | 0.5 |
| 1 | BK | 0.5 |
| 1 | BK | 1 |
| 1 | BK | 2 |
| 1 | BK | 0.5 |
| 1 | BK | 0.75 |
| 1 | BK | 0.5 |
| 1 | BK | 0.5 |
| 1 | BK | 2 |
| 1 | BK | 2 |
| 1 | BK | 2 |
