X025 - s-rhd-sop5

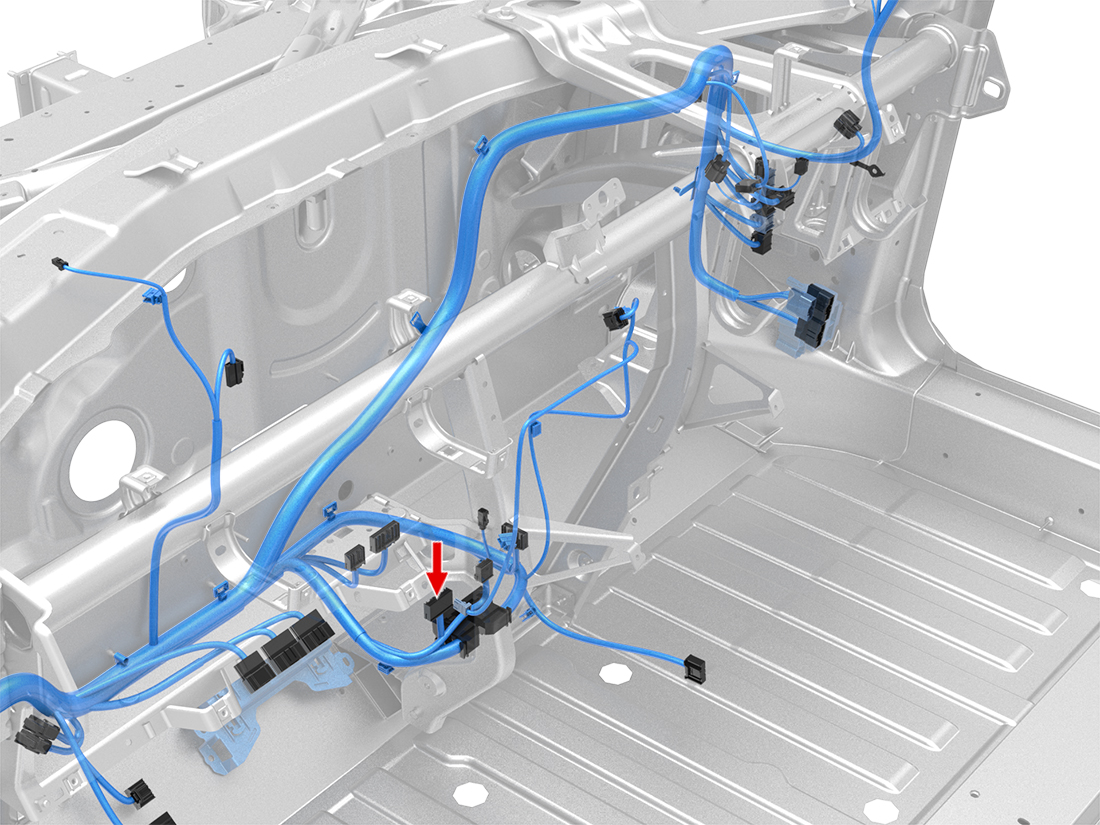

Location:

Connector Detail: jae_mx34032sf1

Gender:

Color: Gray

Cav	Col	Gauge
1	DG	0.35
3	WH/BK	0.35
4	WH	0.35
5	DB/LB	0.35
6	TN/DG	0.35
8	DB/PK	0.35
11	GY	0.35
12	TN	0.35
14	VT/GY	0.35
16	VT	0.75
17	WH/DG	0.35
19	VT/GY	0.35
20	GY/YE	0.35
21	DG/VT	0.35
22	OG/WH	0.35
24	VT/GY	0.35
29	LG/RD	0.35
32	VT/WH	0.75
