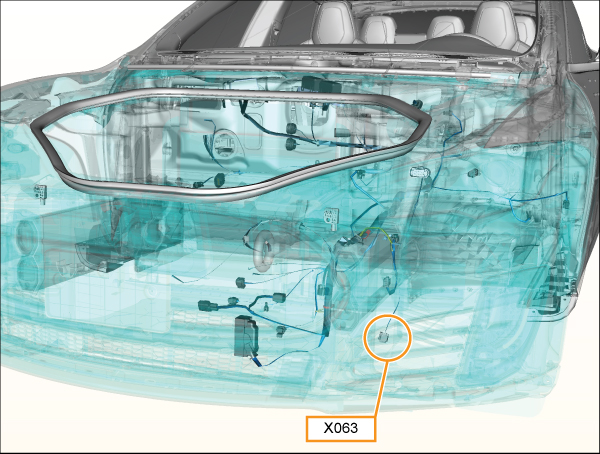

X063 - s-rhd-sop5
Location:
Connector Detail: amp_1-967640-1
Gender:
Color: BK
| Cav | Col | Gauge |
|---|---|---|
| 1 | GY/WH | 0.35 |
| 2 | WH/VT | 0.35 |
| 3 | WH | 0.35 |
| 4 | DG/VT | 0.35 |
2012-2020 Model S Connector Reference
