X402 - s-rhd-sop5

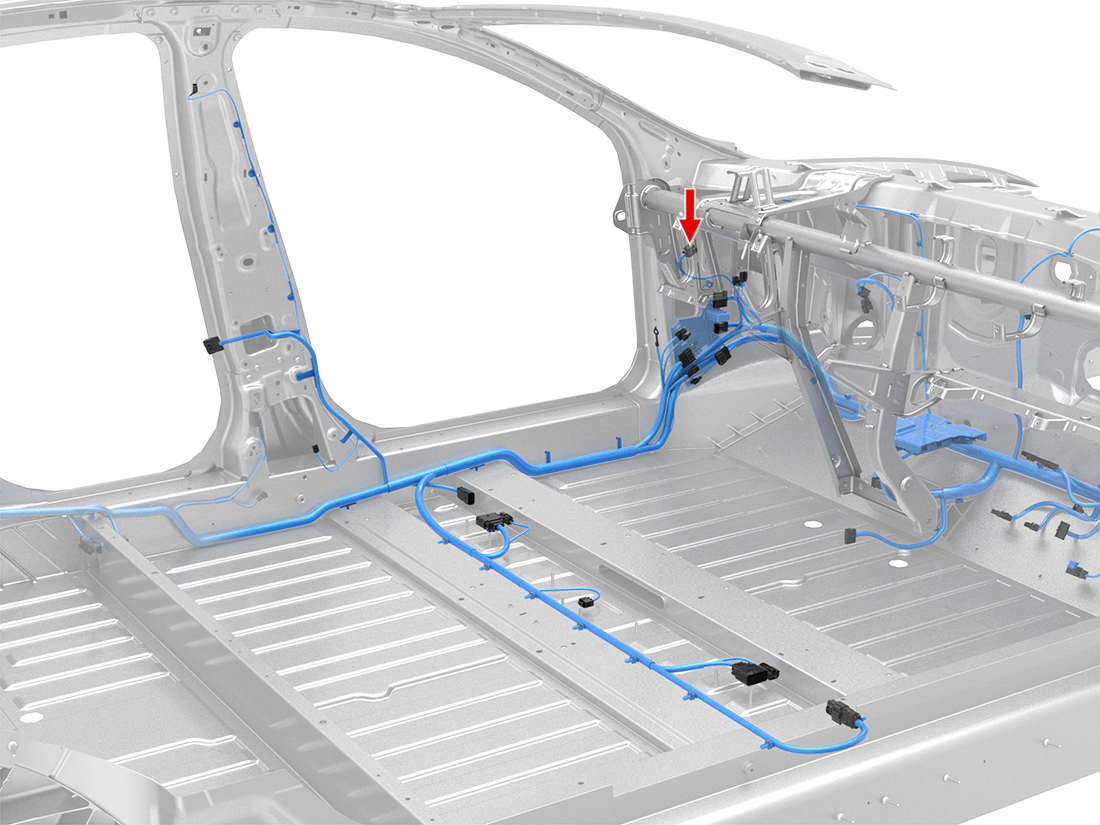

Location:
Connector Detail: sumitomo_6189-0133
Gender:
Color: LightGray
| Cav | Col | Gauge |
|---|---|---|
| 1 | BN | 1 |
| 2 | WH/RD | 0.35 |
| 3 | WH/BN | 0.35 |
| 4 | RD/WH | 1 |
| 5 | LB | 0.5 |
| 6 | BN | 0.5 |
2012-2020 Model S Connector Reference
