X405 - s-rhd-sop5

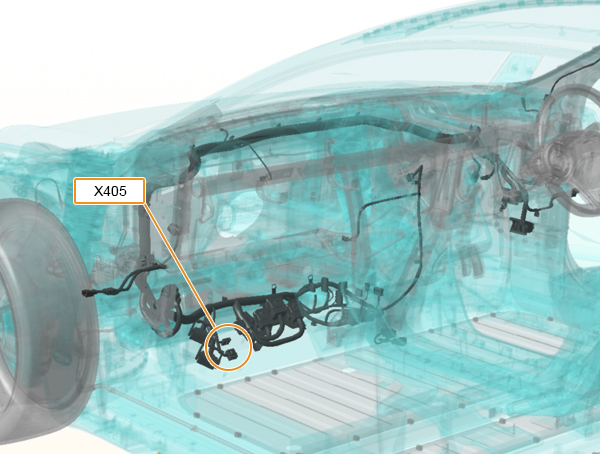

Location:
Connector Detail: molex_31372-1000
Gender:
Color: BK
| Cav | Col | Gauge |
|---|---|---|
| 1 | WH/DG | 0.5 |
| 2 | LB | 0.5 |
| 4 | BN | 0.5 |
| 5 | RD/GY | 1 |
| 6 | VT | 1 |
| 7 | BK | 2 |
| 8 | VT | 2 |
| 9 | RD/WH | 1 |
| 10 | BN | 1 |
2012-2020 Model S Connector Reference
