X424 - s-rhd-sop5

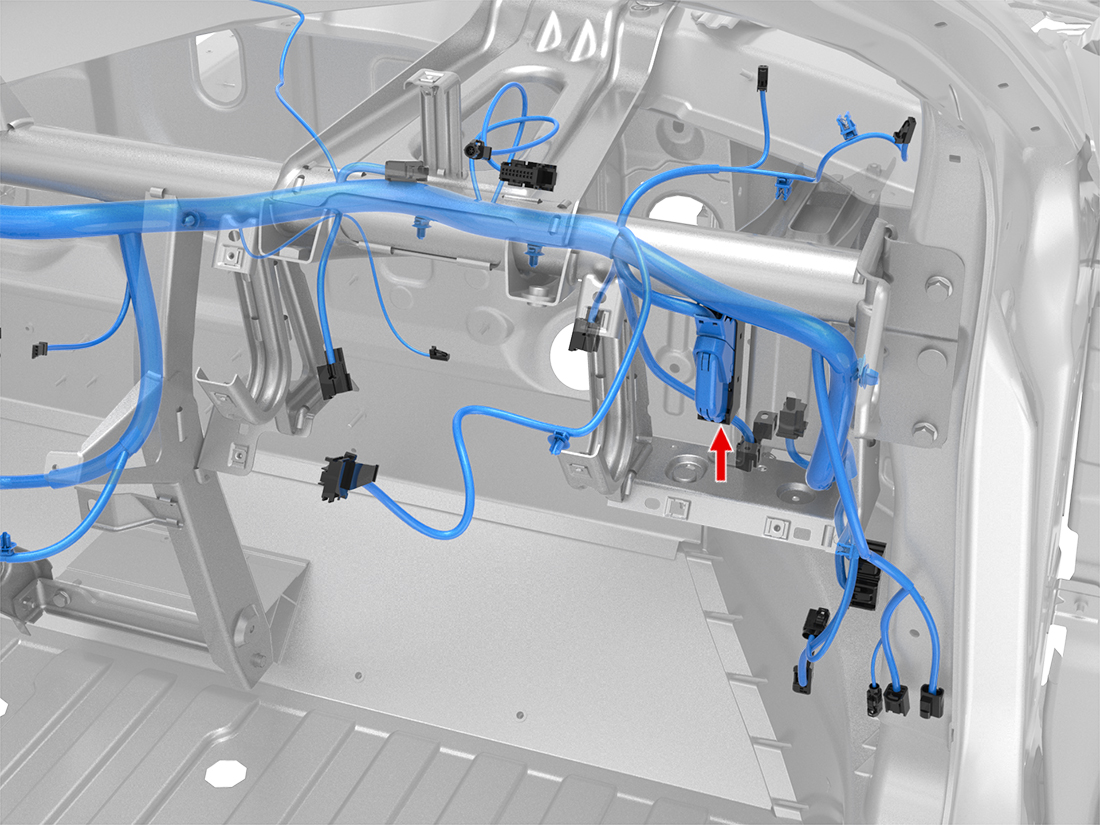

Location:
Connector Detail: amp_1534181-1
Gender:
Color: BK
| Cav | Col | Gauge |
|---|---|---|
| 23 | GY | 0.35 |
| 24 | LG | 0.35 |
| 25 | RD | 0.35 |
| 26 | WH | 0.35 |
| 27 | WH/BK | 0.35 |
| 28 | GY/WH | 0.35 |
| 29 | BK/GY | 0.35 |
| 30 | WH/RD | 0.35 |
| 31 | WH/BK | 0.35 |
| 32 | DG | 0.35 |
2012-2020 Model S Connector Reference
