X575 - s-rhd-sop5

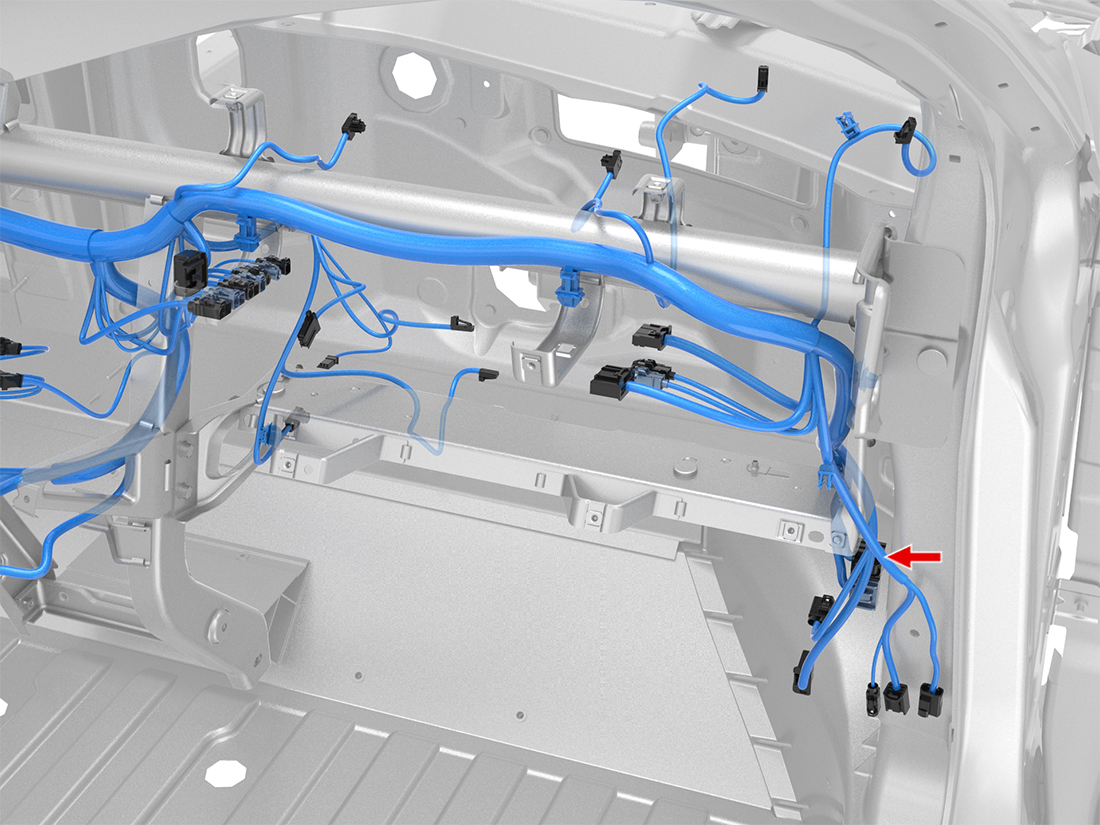

Location:
Connector Detail: delphi_13799638
Gender: UNSPEC
Color: BK
| Cav | Col | Gauge |
|---|---|---|
| 3 | RD/WH | 2 |
| 6 | YE/BN | 2 |
| 7 | VT/GY | 0.5 |
| 8 | GY | 2 |
