X762 - s-rhd-sop5

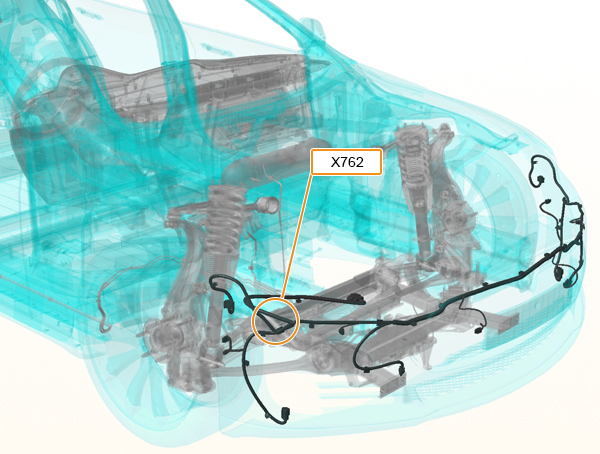

Location:
Connector Detail: yazaki_7283-2764-30
Gender:
Color: BK
| Cav | Col | Gauge |
|---|---|---|
| 1 | WH | 0.5 |
| 2 | WH | 0.5 |
| 3 | WH | 0.5 |
| 4 | WH/DB | 0.5 |
| 5 | WH/DB | 0.5 |
| 6 | WH/DB | 0.5 |
