X908F - s-rhd-sop5

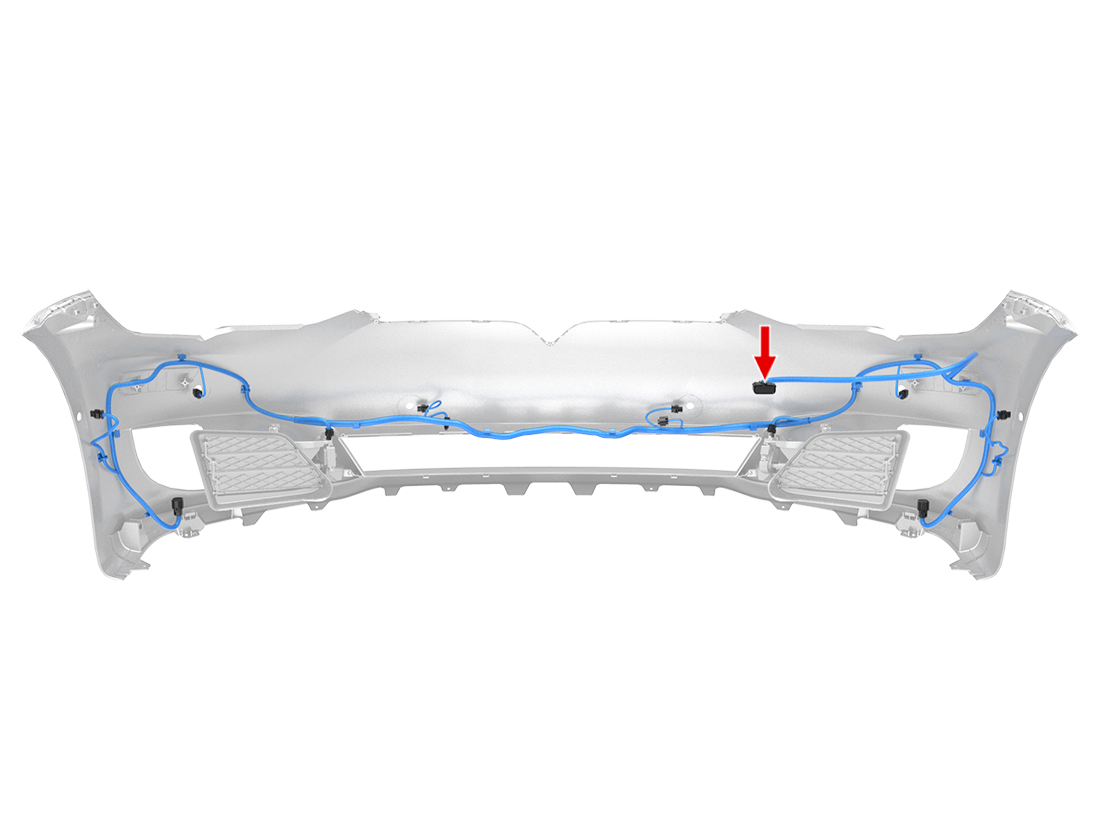

Location:

Connector Detail: molex_33472-2001

Gender:

Color: BK

Cav	Col	Gauge
1	TN	0.35
2	RD	0.35
3	WH/BK	0.35
4	TN/DG	0.35
5	LG	0.35
6	WH/VT	0.35
7	WH/DB	0.5
8	WH	0.5
9	DB/PK	0.35
10	OG	0.35
11	OG/DB	0.5
12	DB/PK	0.35
13	GY/YE	0.35
14	WH/RD	0.35
15	VT	0.5
16	LG/WH	0.5
17	RD/OG	0.35
18	WH/DG	0.35
19	WH/DB	0.35
20	BK	0.75
