X915M - s-rhd-sop5

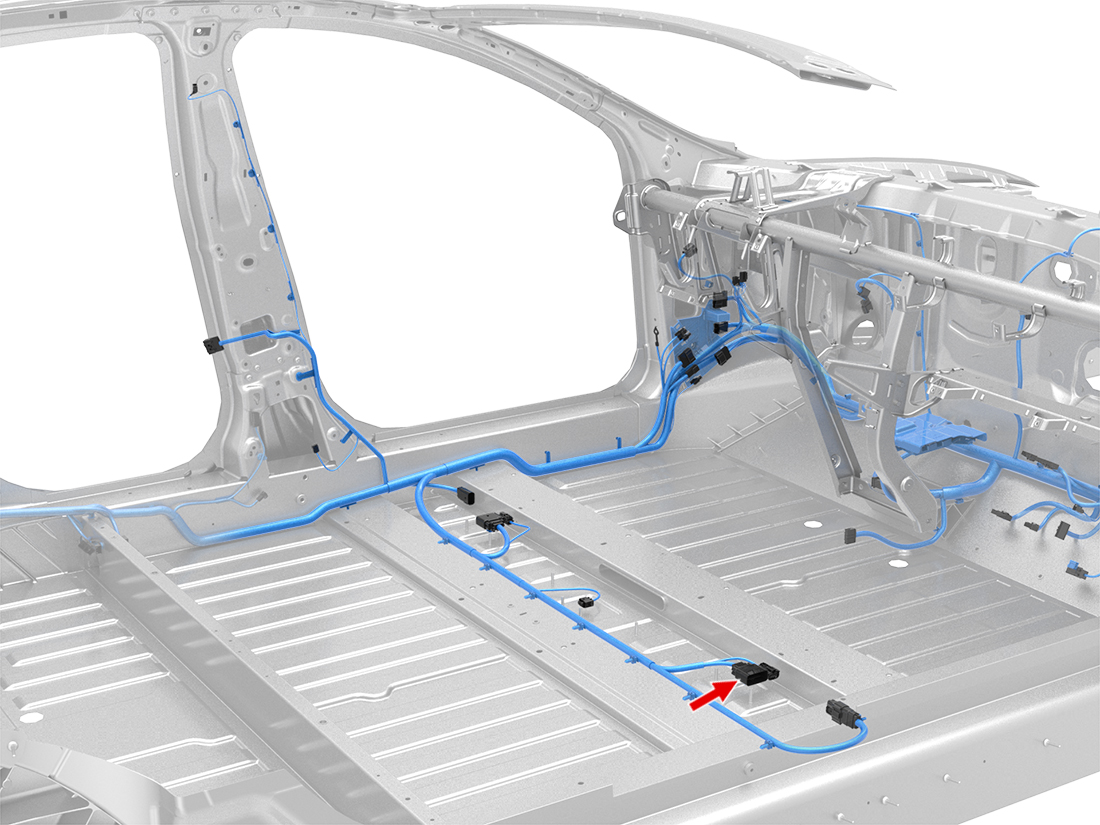

Location:
Connector Detail: molex_34986-1601
Gender: TAB-STD
Color: BK
| Cav | Col | Gauge |
|---|---|---|
| 1 | BN/WH | 2 |
| 2 | WH/DG | 0.35 |
| 3 | DG | 0.35 |
| 4 | VT | 0.5 |
| 5 | BK | 0.5 |
| 6 | LG/WH | 0.5 |
| 7 | GY/WH | 0.35 |
| 8 | BK | 2 |
| 9 | VT/WH | 0.75 |
| 10 | OG/LG | 0.5 |
| 11 | BK | 0.5 |
| 12 | PK/BK | 0.5 |
| 13 | DG/BK | 0.5 |
| 14 | RD | 0.5 |
| 15 | GY/YE | 0.5 |
| 16 | BK | 0.75 |
