X921F - s-rhd-sop5

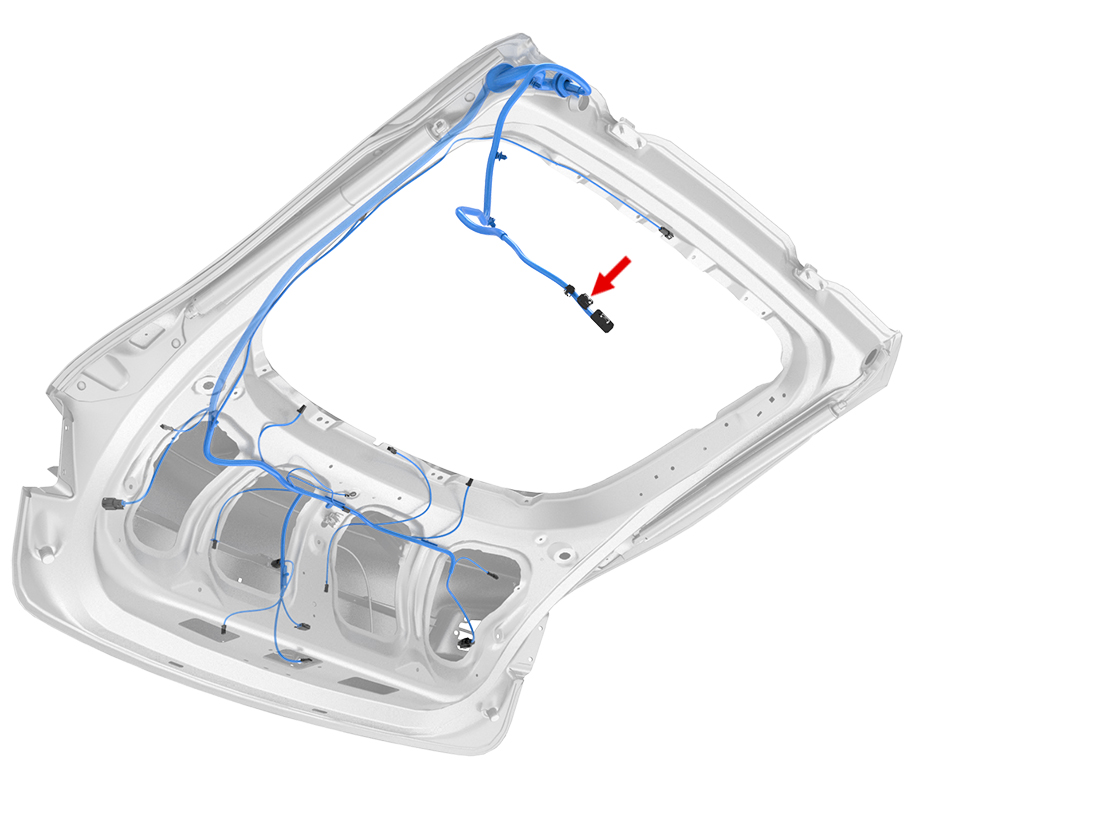

Location:
Connector Detail: sumitomo_6098-3917
Gender:
Color: WH
| Cav | Col | Gauge |
|---|---|---|
| 1 | WH/BK | 0.35 |
| 2 | TN/DG | 0.35 |
| 3 | TN | 0.35 |
| 4 | DB/PK | 0.35 |
| 5 | VT/GY | 0.35 |
| 6 | GY | 0.35 |
| 8 | VT/GY | 0.35 |
| 9 | DG/VT | 0.35 |
| 11 | WH | 0.35 |
| 12 | TN/DB | 0.35 |
| 13 | LG/RD | 0.35 |
