X945F - s-rhd-sop5

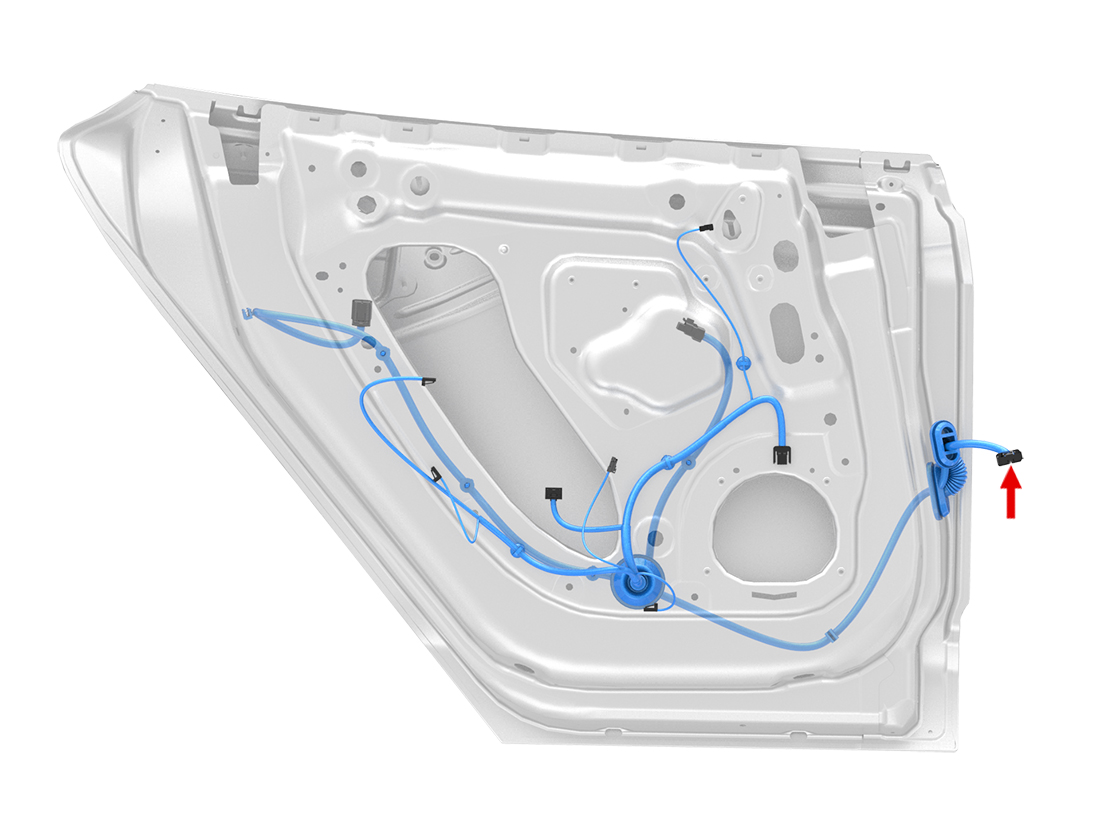

Location:
Connector Detail: sumitomo_6098-5609
Gender:
Color: GY
| Cav | Col | Gauge |
|---|---|---|
| 1 | DG | 2 |
| 2 | LG/WH | 0.35 |
| 4 | LG | 0.35 |
| 7 | TN/BK | 0.35 |
| 8 | DB/LB | 0.35 |
| 9 | GY | 0.35 |
| 10 | VT | 2 |
| 11 | BK | 2 |
| 12 | LG/VT | 0.35 |
| 16 | TN/DB | 0.35 |
| 17 | DB/PK | 0.35 |
| 18 | VT/BK | 2 |
