X958F - s-rhd-sop5

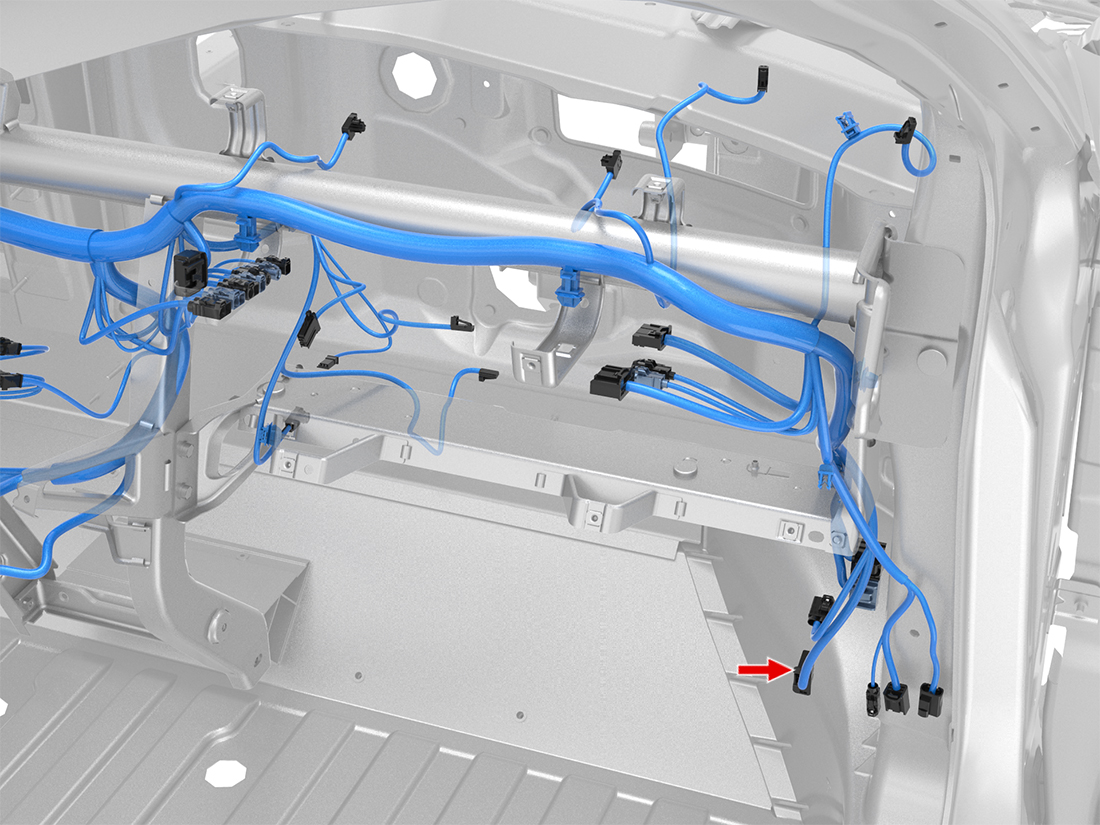

Location:
Connector Detail: sumitomo_6098-5641
Gender:
Color: WH
| Cav | Col | Gauge |
|---|---|---|
| 1 | VT | 0.5 |
| 2 | LB | 0.5 |
| 2 | LB | 0.5 |
| 3 | OG | 0.35 |
| 3 | OG | 0.35 |
| 4 | WH/DB | 0.35 |
| 5 | RD/OG | 0.35 |
| 6 | WH/RD | 0.35 |
| 12 | DB | 0.5 |
| 12 | DG | 0.5 |
| 13 | GY | 0.35 |
| 13 | GY | 0.35 |
| 14 | WH | 0.35 |
| 15 | RD | 0.35 |
