X976F - s-rhd-sop5

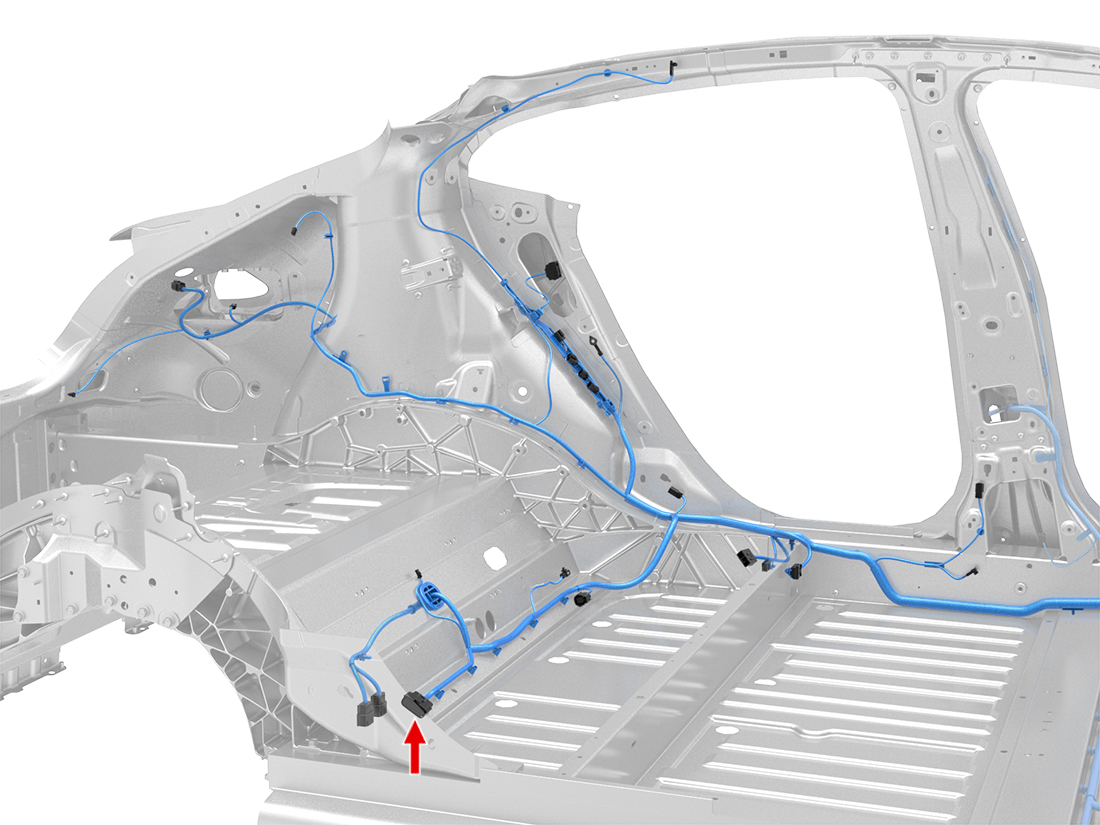

Location:
Connector Detail: molex_33472-2001
Gender:
Color: BK
| Cav | Col | Gauge |
|---|---|---|
| 2 | OG/LG | 0.5 |
| 3 | WH/BN | 0.5 |
| 4 | WH/RD | 0.5 |
| 5 | WH/DG | 0.5 |
| 6 | VT | 0.5 |
| 7 | WH | 0.5 |
| 8 | RD/WH | 0.5 |
| 9 | YE/DG | 0.5 |
| 13 | TN | 0.5 |
| 14 | RD | 0.5 |
| 15 | DG | 0.5 |
| 16 | OG | 0.5 |
| 18 | RD | 0.75 |
| 19 | YE | 0.5 |
