G620 - s-rhd-sop7

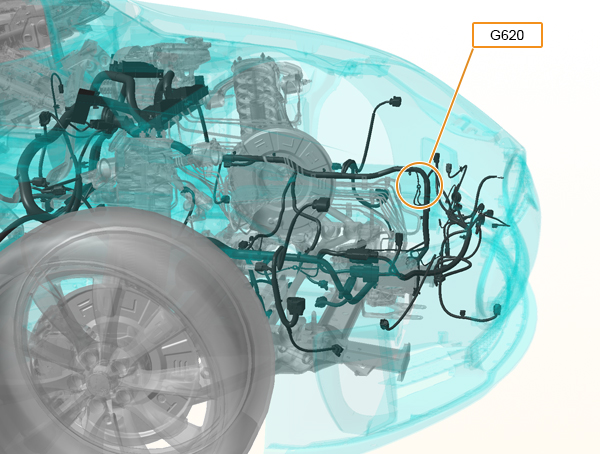

Location:
Connector Detail: yazaki_7009-1836
Gender:
Color:
| Cav | Col | Gauge |
|---|---|---|
| 1 | BK | 3 |
| 1 | BK | 1 |
| 1 | BK | 0.5 |
| 1 | BK | 4 |
| 1 | BK | 2 |
| 1 | BK | 0.35 |
| 1 | BK | 1 |
| 1 | BK | 1 |
| 1 | BK | 0.5 |
| 1 | BK | 0.35 |
| 1 | BK | 1 |
2012-2020 Model S Connector Reference
