X071 - s-rhd-sop7

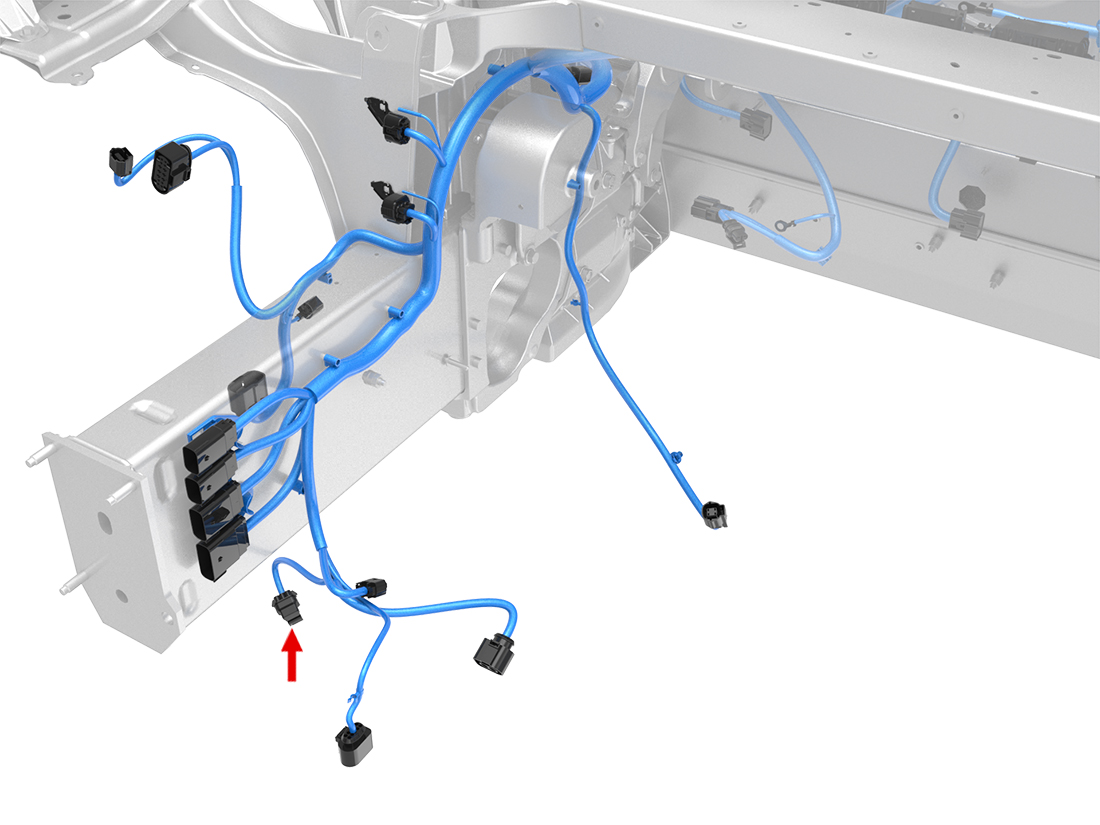

Location:
Connector Detail: delphi_12052848
Gender:
Color: BK
| Cav | Col | Gauge |
|---|---|---|
| A | RD/GY | 0.35 |
| C | BK | 0.35 |
| D | BK/GY | 0.35 |
| F | YE/WH | 0.35 |
