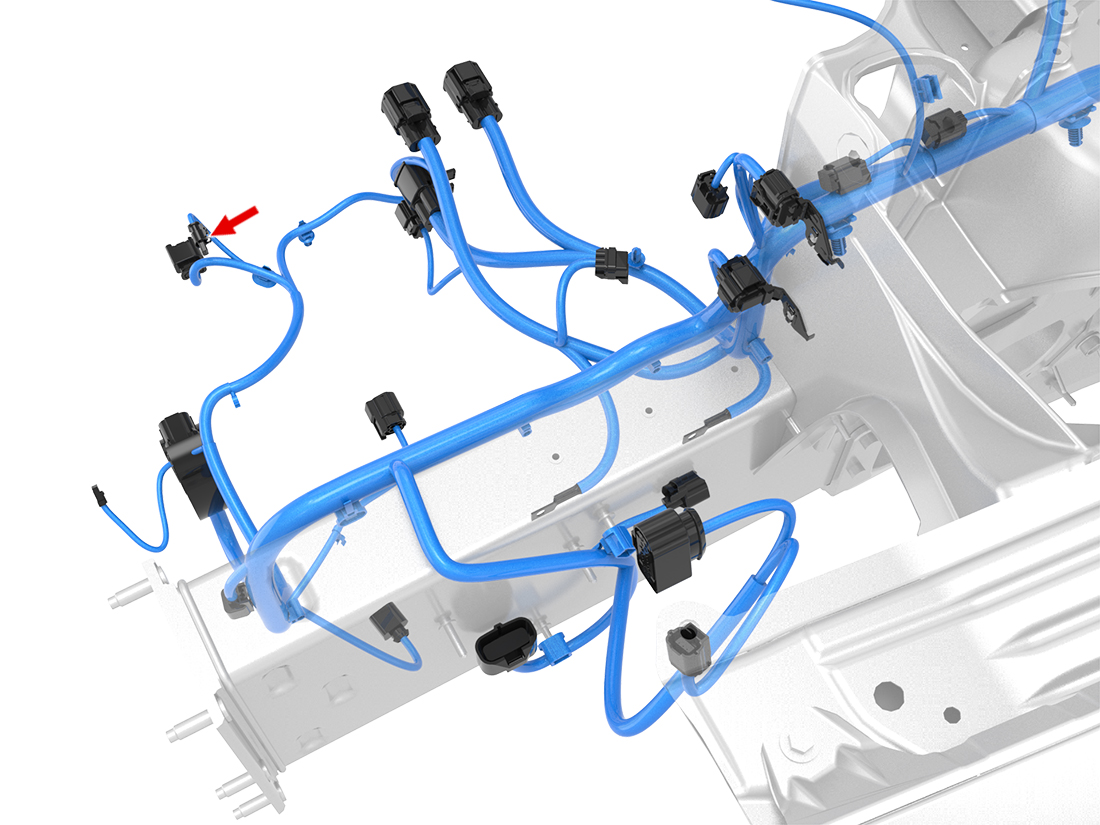

X072A - s-rhd-sop7
Location:
Connector Detail: amp_1488991-5
Gender:
Color: BK
| Cav | Col | Gauge |
|---|---|---|
| 1 | GN | 0.5 |
| 2 | RD/BU | 0.5 |
| 3 | BK | 0.5 |
2012-2020 Model S Connector Reference
