X077 - s-rhd-sop7

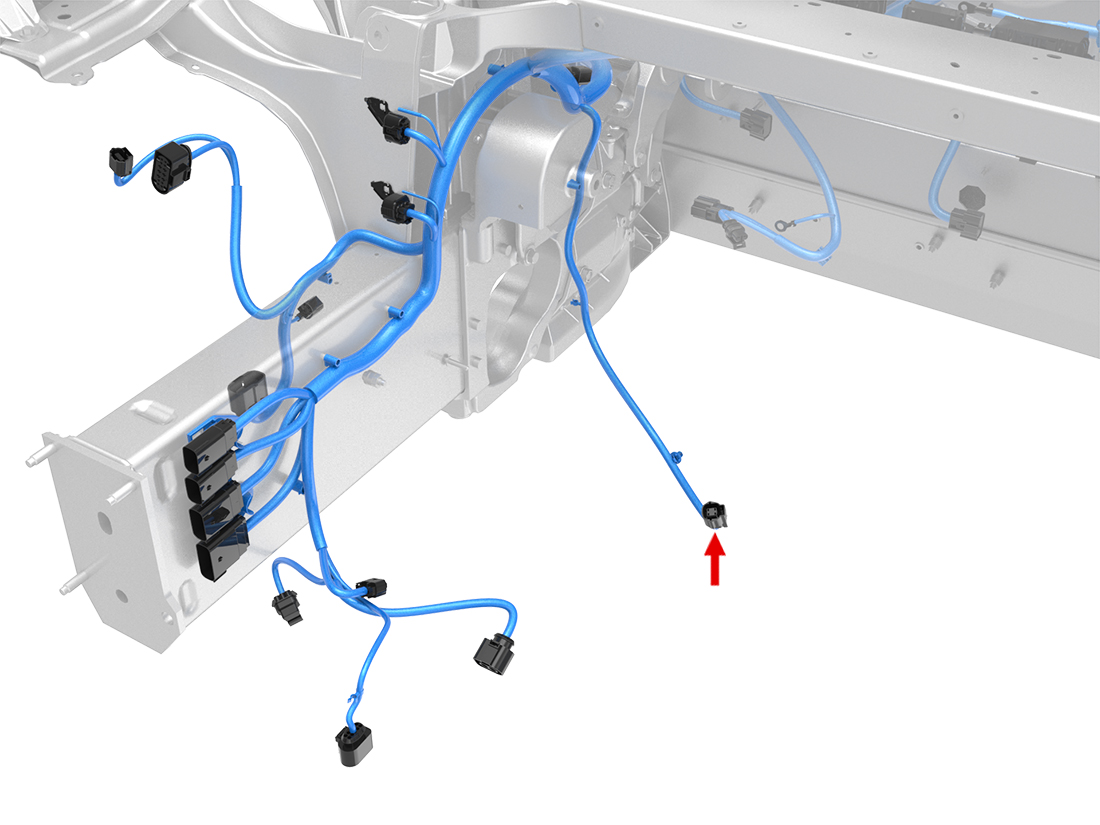

Location:
Connector Detail: sumitomo_6189-7757
Gender: UNSPEC
Color: Gray
| Cav | Col | Gauge |
|---|---|---|
| 1 | RD/BK | 1 |
| 2 | BK | 1 |
| 3 | GY/WH | 0.35 |
| 4 | GN/WH | 0.35 |
