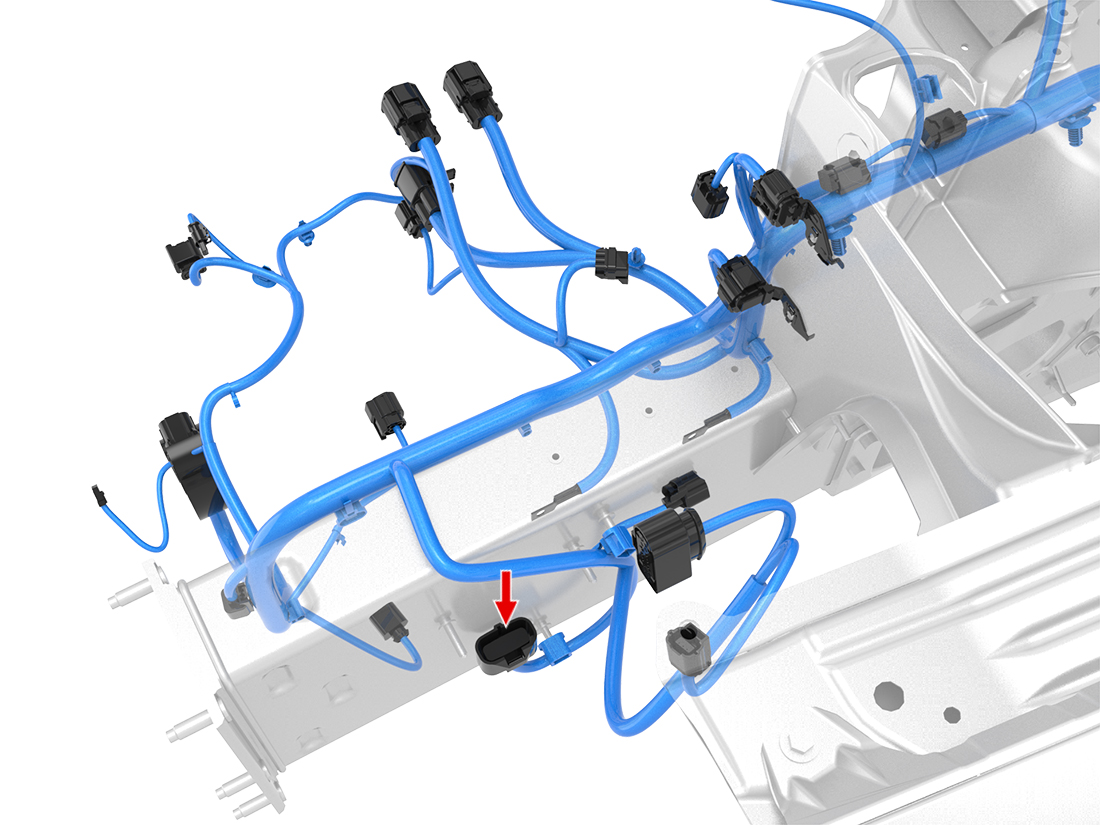

X079 - s-rhd-sop7
Location:
Connector Detail: sumitomo_6189-0588
Gender:
Color: Gray
| Cav | Col | Gauge |
|---|---|---|
| 1 | OG/GN | 3 |
| 2 | VT/WH | 0.5 |
| 3 | BK | 3 |
2012-2020 Model S Connector Reference
