X129A - s-rhd-sop7

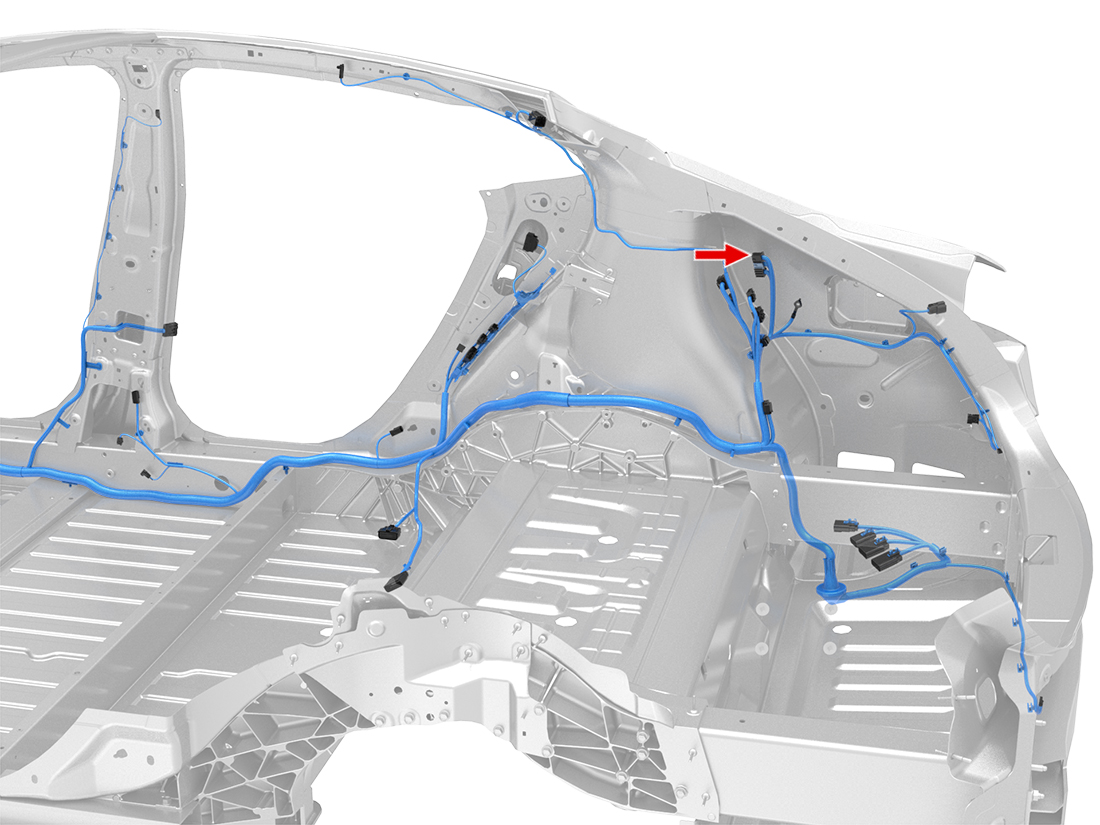

Location:
Connector Detail: molex_34729-0120
Gender:
Color: BK
| Cav | Col | Gauge |
|---|---|---|
| 1 | RD/BU | 0.5 |
| 6 | GN/WH | 0.35 |
| 7 | BK | 0.5 |
| 12 | GN | 0.35 |
2012-2020 Model S Connector Reference
