X160 - s-rhd-sop7

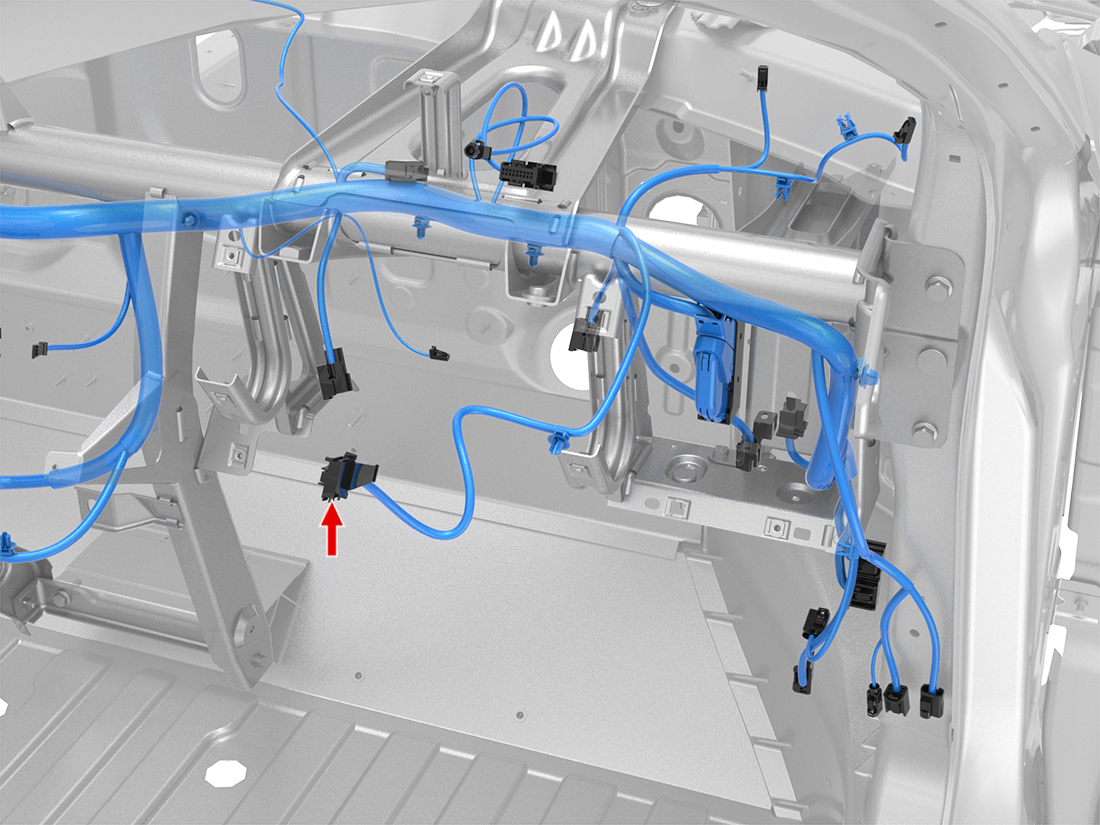

Location:
Connector Detail: kostal_22400736181
Gender:
Color: Yellow
| Cav | Col | Gauge |
|---|---|---|
| 1 | GN | 0.35 |
| 2 | GN/WH | 0.35 |
| 3 | BK | 0.5 |
| 4 | RD/GY | 0.35 |
| 6 | RD | 0.5 |
| 7 | BK | 0.5 |
| 8 | YE/WH | 0.5 |
| 9 | BN | 0.5 |
| 10 | WH/BU | 0.5 |
| 11 | RD/BU | 0.5 |
2012-2020 Model S Connector Reference
