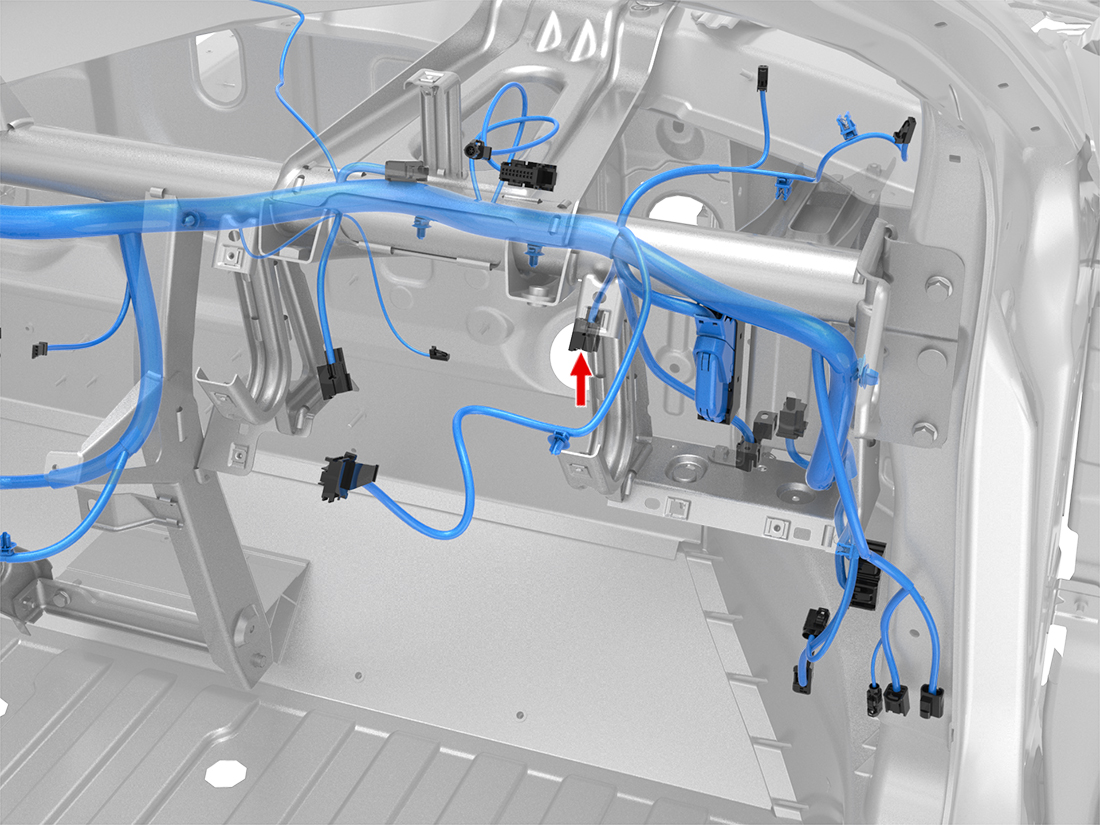

X167 - s-rhd-sop7
Location:
Connector Detail: amp_1326490-3
Gender:
Color: Gray
| Cav | Col | Gauge |
|---|---|---|
| 1 | RD/VT | 1 |
| 2 | VT | 1 |
| 3 | BN | 0.35 |
| 4 | OG | 0.35 |
2012-2020 Model S Connector Reference
