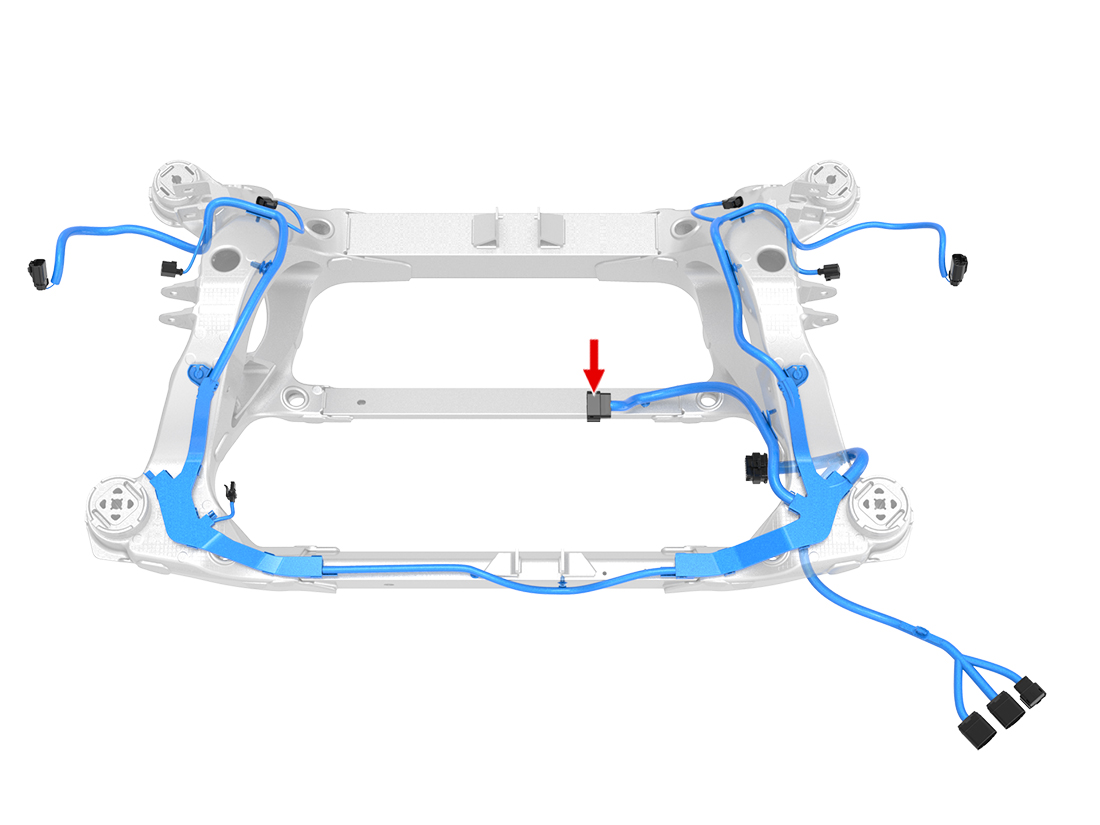

X251 - s-rhd-sop7
Location:
Connector Detail: molex_33472-2007
Gender: REC-STD
Color: GY
| Cav | Col | Gauge |
|---|---|---|
| 1 | RD | 0.5 |
| 2 | RD/WH | 0.5 |
| 3 | RD/YE | 0.5 |
| 4 | GY | 0.5 |
| 5 | OG | 0.5 |
| 6 | BK/VT | 0.5 |
| 7 | GN | 0.5 |
| 10 | RD/BK | 0.75 |
| 11 | YE | 0.5 |
| 12 | BU | 0.5 |
| 13 | RD/BU | 0.75 |
| 14 | BU/WH | 0.5 |
| 17 | WH | 0.5 |
| 18 | VT/WH | 0.75 |
| 19 | BK | 0.75 |
| 20 | GN/WH | 0.5 |
