X266 - s-rhd-sop7

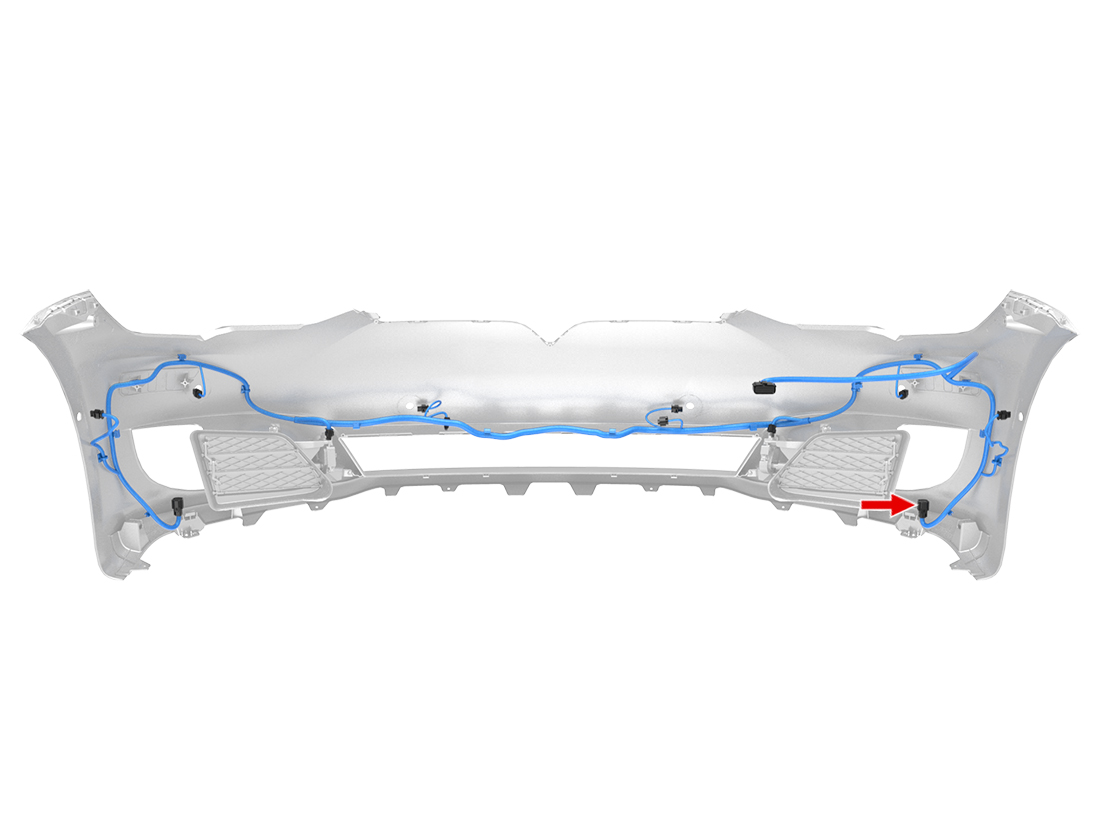

Location:
Connector Detail: molex_33472-0601
Gender:
Color: BK
| Cav | Col | Gauge |
|---|---|---|
| 2 | RD/WH | 0.35 |
| 3 | BU/WH | 0.35 |
| 4 | GN/RD | 0.35 |
| 5 | BK | 0.5 |
2012-2020 Model S Connector Reference
