X306 - s-rhd-sop7

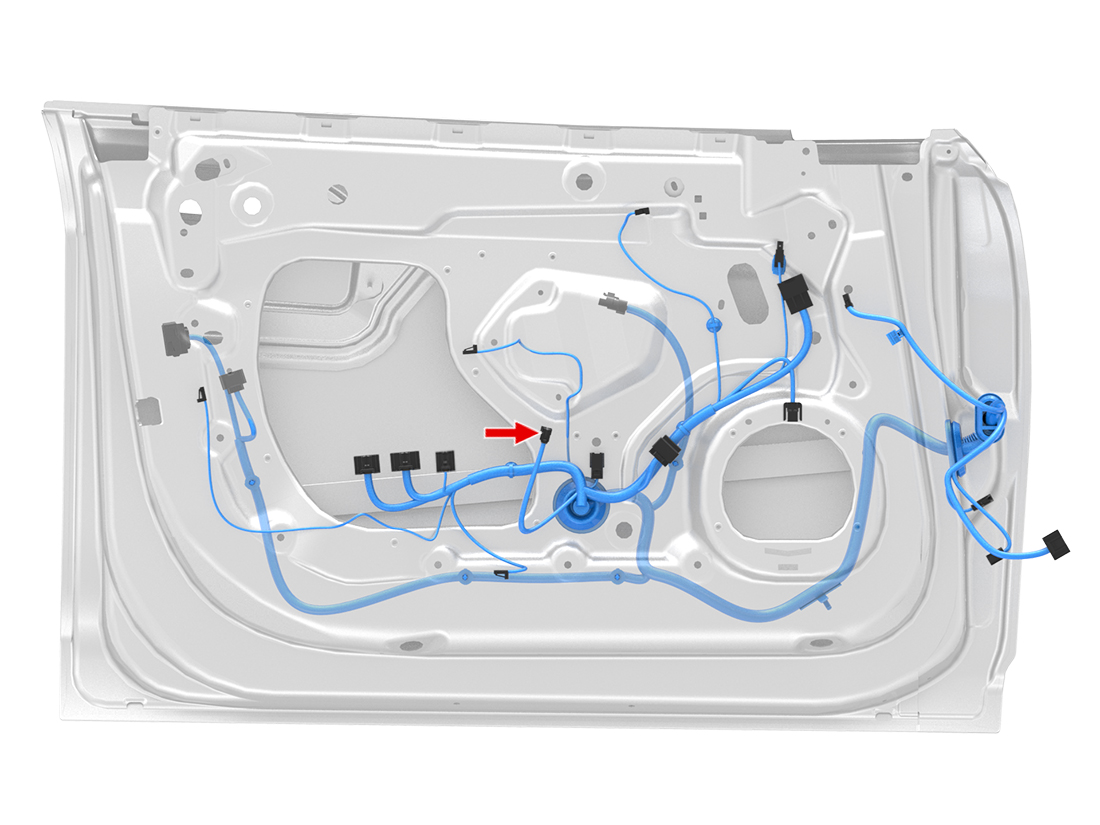

Location:
Connector Detail: amp_3-929169-1
Gender:
Color: Blue
| Cav | Col | Gauge |
|---|---|---|
| 1 | LG | 0.5 |
| 2 | GY/WH | 0.35 |
| 3 | RD/OG | 0.35 |
2012-2020 Model S Connector Reference
