X377 - s-rhd-sop7

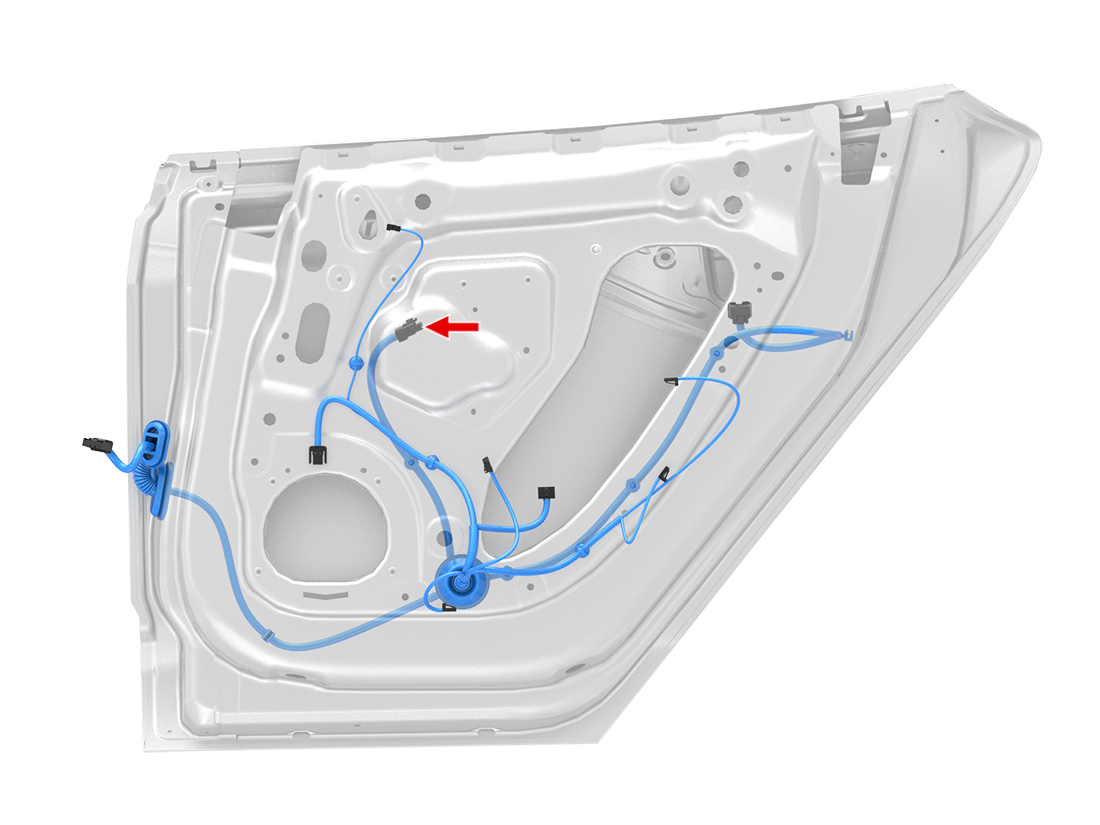

Location:
Connector Detail: fci_211pc069s8049
Gender:
Color: Gray
| Cav | Col | Gauge |
|---|---|---|
| 1 | YE/WH | 0.5 |
| 2 | YE | 0.5 |
| 3 | RD/GN | 1.5 |
| 4 | BK | 2 |
| 5 | WH | 0.5 |
| 6 | WH/BK | 0.5 |
2012-2020 Model S Connector Reference
