X393 - s-rhd-sop7

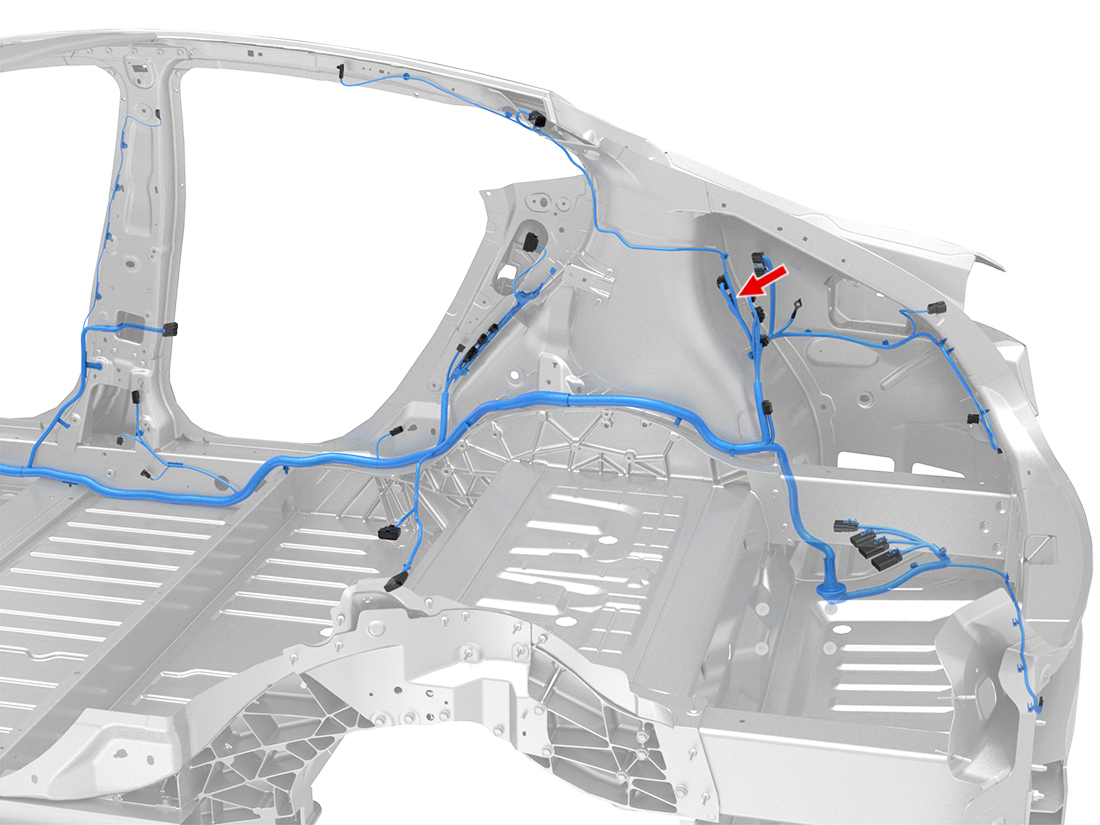

Location:
Connector Detail: jae_mx34020sf1
Gender:
Color: Gray
| Cav | Col | Gauge |
|---|---|---|
| 1 | VT/WH | 0.35 |
| 2 | OG/BK | 0.35 |
| 3 | BN/WH | 0.35 |
| 4 | BU | 0.35 |
| 5 | WH/BU | 0.35 |
| 6 | OG | 0.35 |
| 7 | RD/GN | 0.5 |
| 8 | RD/BU | 0.5 |
| 11 | WH | 0.35 |
| 13 | BN | 0.35 |
| 17 | GY/WH | 0.35 |
| 18 | GY | 0.35 |
