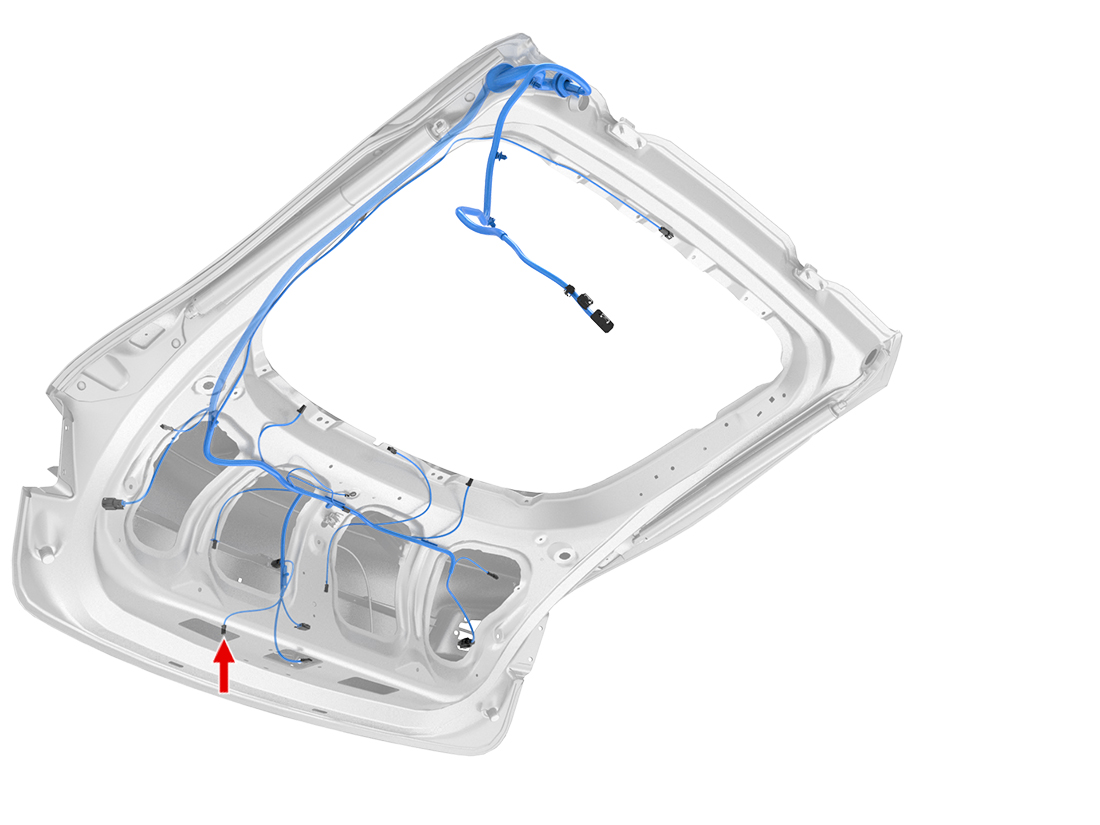

X394 - s-rhd-sop7
Location:
Connector Detail: amp_1-1718346-1
Gender:
Color: BK
| Cav | Col | Gauge |
|---|---|---|
| 1 | OG | 0.35 |
| 2 | BK | 0.35 |
| 3 | OG/BK | 0.35 |
2012-2020 Model S Connector Reference
