X408A - s-rhd-sop7

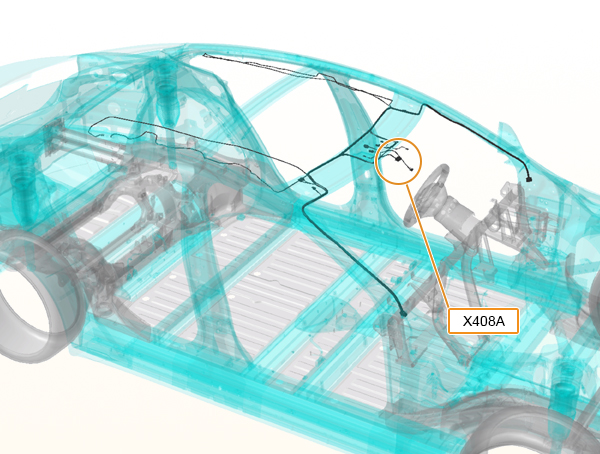

Location:
Connector Detail: yazaki_7283-4274-30
Gender: UNSPEC
Color: BK
| Cav | Col | Gauge |
|---|---|---|
| 1 | RD/YE | 0.5 |
| 2 | LG/WH | 0.35 |
| 3 | OG | 0.35 |
| 4 | LG | 0.35 |
| 5 | BK | 0.35 |
2012-2020 Model S Connector Reference
