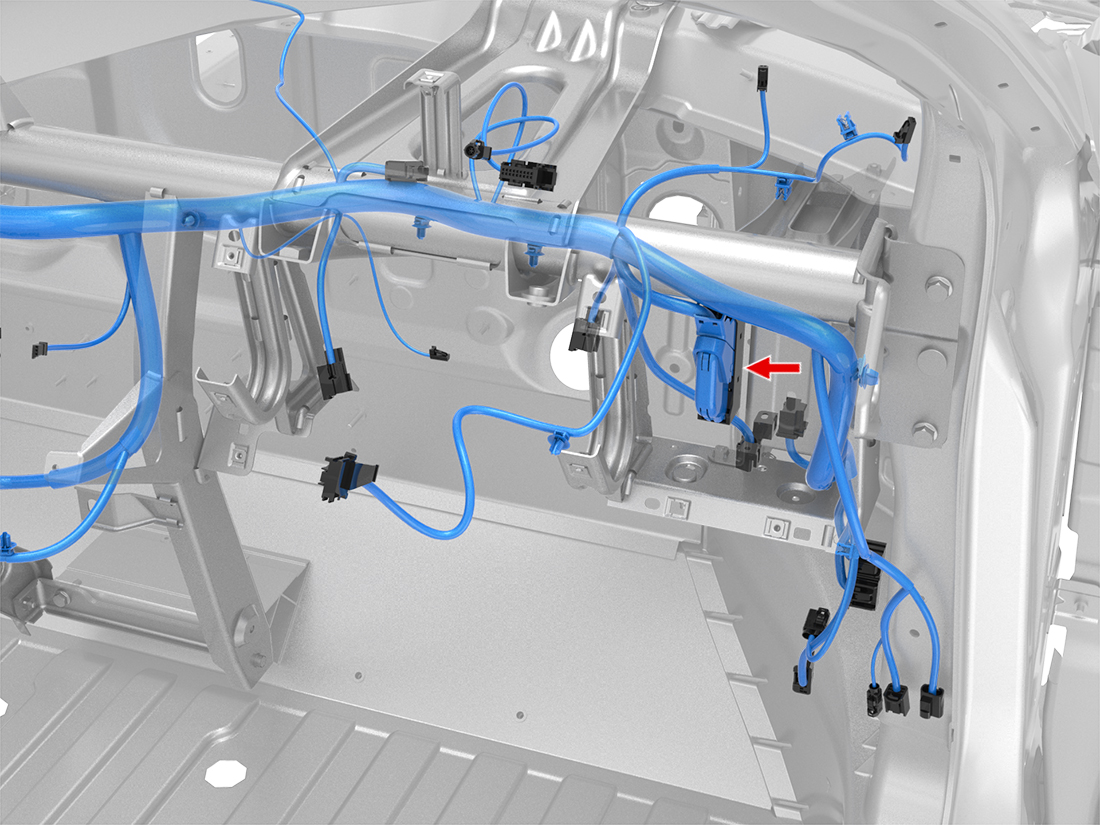

X423 - s-rhd-sop7
Location:
Connector Detail: amp_1534180-1
Gender:
Color: BK
| Cav | Col | Gauge |
|---|---|---|
| 1 | RD/WH | 1.5 |
| 2 | BK | 1.5 |
| 3 | BU/WH | 1.5 |
| 4 | GN/WH | 1.5 |
| 5 | OG | 2 |
| 6 | BU | 0.75 |
| 7 | BK | 0.75 |
| 11 | YE | 0.35 |
| 12 | BN/WH | 0.35 |
| 15 | BU | 1.5 |
| 16 | GN | 1.5 |
| 17 | VT | 2 |
| 18 | VT | 0.75 |
| 19 | GN | 0.75 |
