X434 - s-rhd-sop7

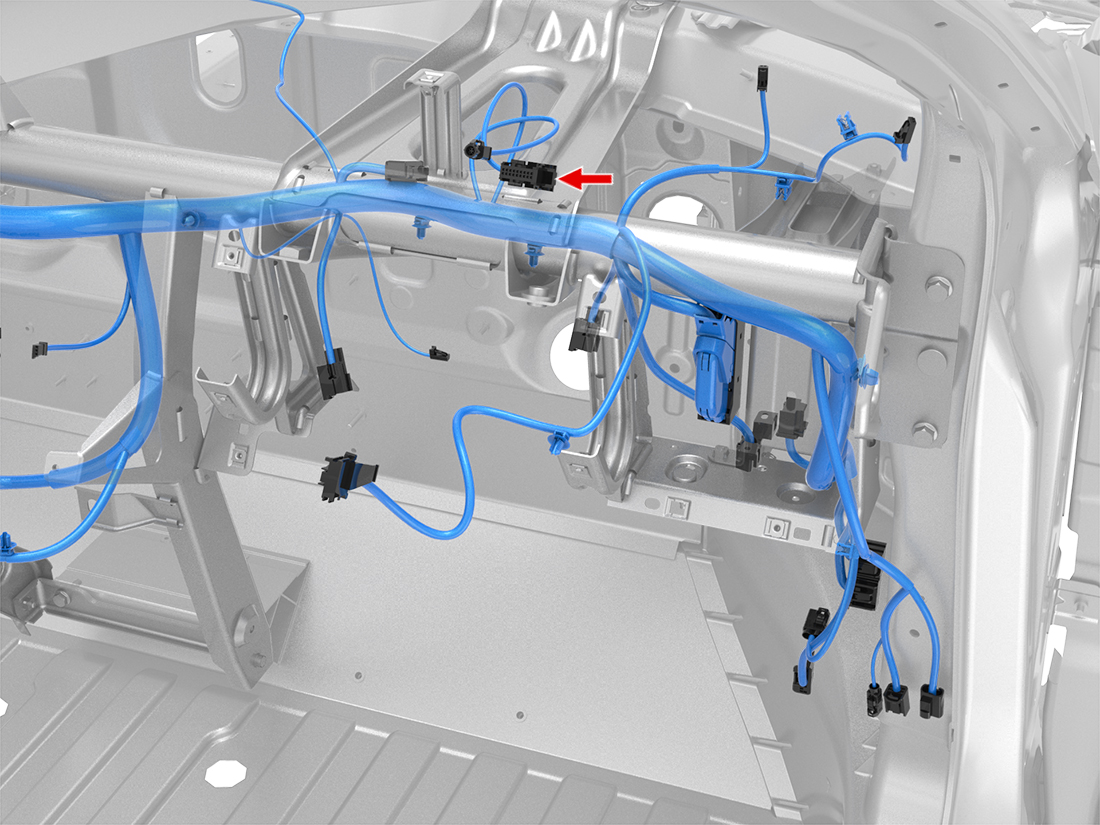

Location:
Connector Detail: amp_1355348-1
Gender:
Color: BK
| Cav | Col | Gauge |
|---|---|---|
| 6 | GN/WH | 0.35 |
| 7 | GN | 0.35 |
| 8 | BK | 0.5 |
| 13 | OG | 0.35 |
| 17 | RD/VT | 0.35 |
