X536 - s-rhd-sop7

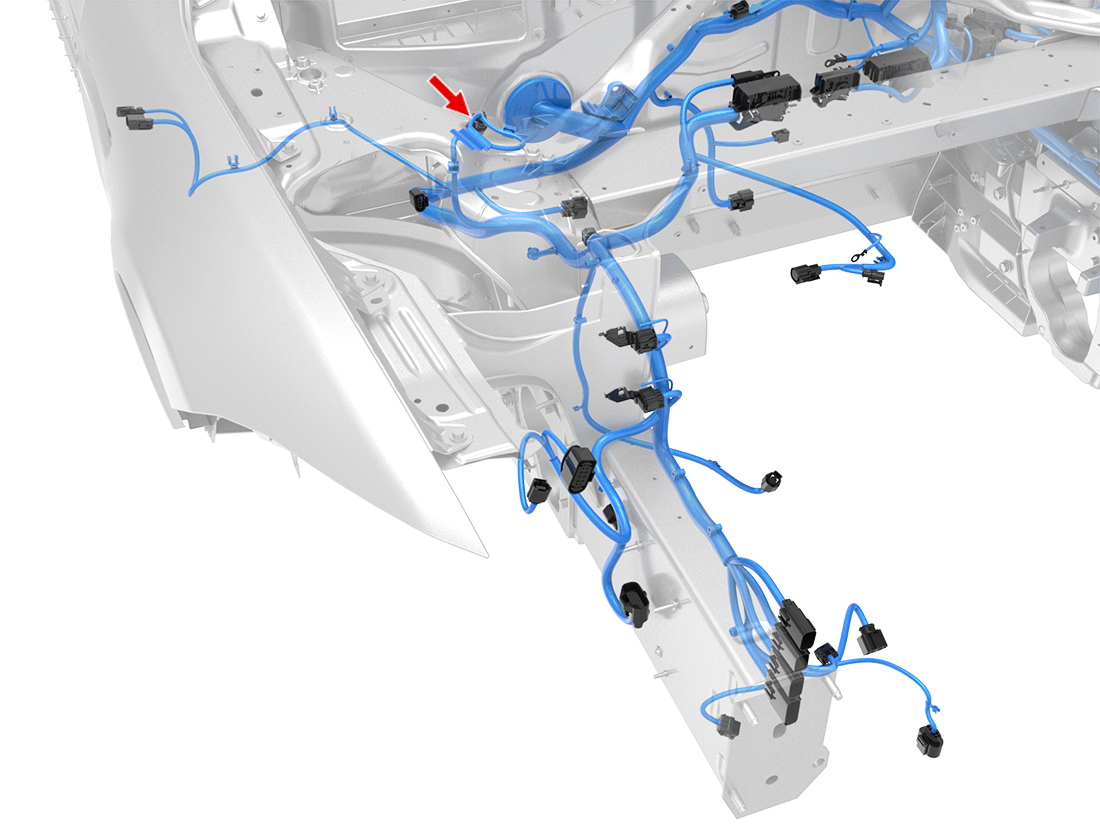

Location:
Connector Detail: molex_33472-0601
Gender:
Color: BK
| Cav | Col | Gauge |
|---|---|---|
| 1 | RD | 1 |
| 2 | GN | 1 |
| 3 | RD | 1 |
| 4 | GN | 1 |
