X576 - s-rhd-sop7

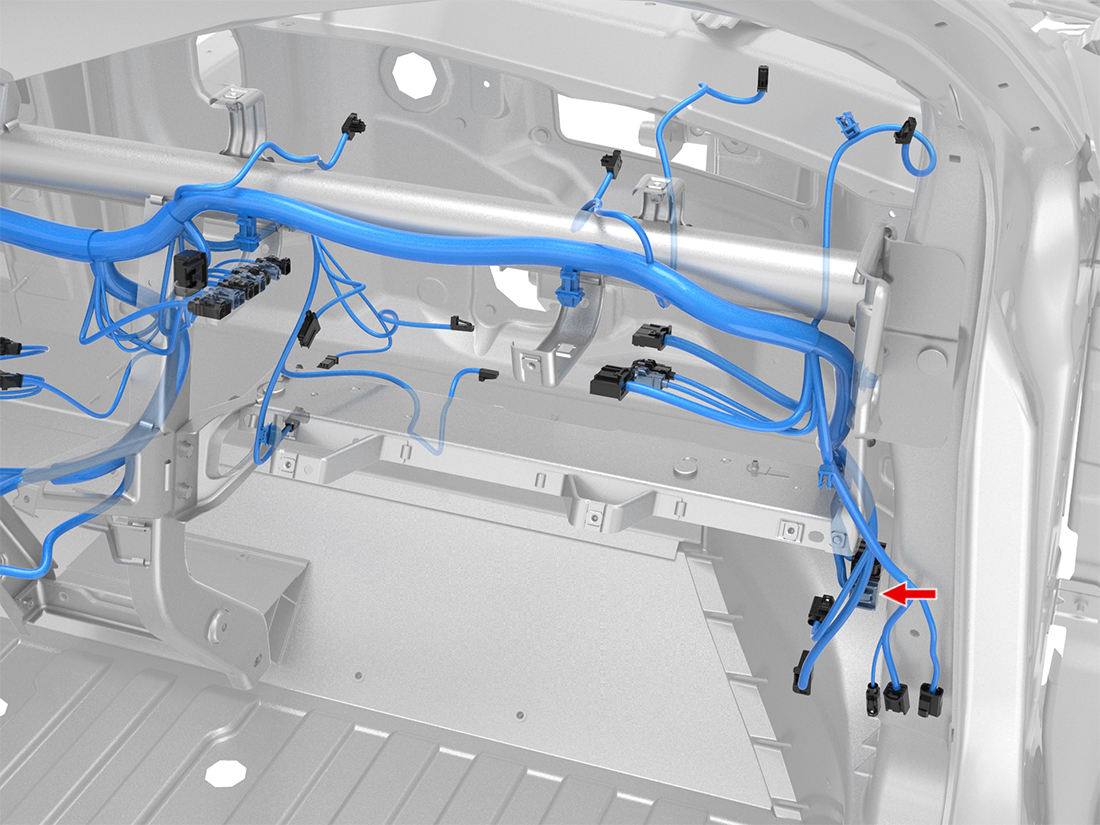

Location:
Connector Detail: delphi_13520383
Gender: UNSPEC
Color: GY
| Cav | Col | Gauge |
|---|---|---|
| 1 | BN/WH | 0.35 |
| 2 | GN/RD | 0.35 |
| 3 | RD/BK | 0.35 |
| 4 | RD/WH | 0.5 |
| 5 | GY | 0.35 |
| 6 | RD/BU | 0.35 |
| 7 | RD/VT | 0.35 |
| 8 | RD/VT | 0.35 |
| 9 | WH/BU | 0.35 |
| 10 | GY/WH | 0.35 |
| 11 | GY/WH | 0.35 |
| 12 | BU/WH | 0.35 |
| 13 | RD | 0.5 |
| 14 | RD/GN | 0.35 |
| 15 | BU | 0.35 |
| 16 | RD/GY | 0.35 |
