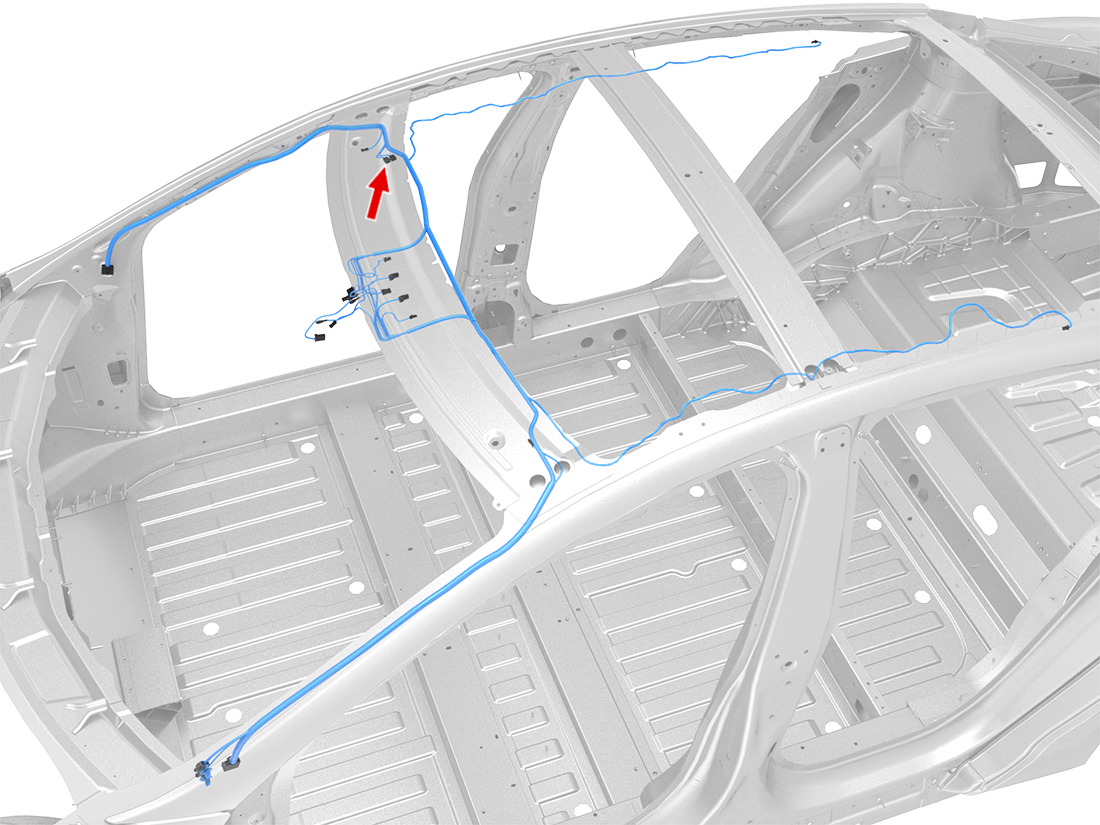

X716 - s-rhd-sop7
Location:
Connector Detail: yazaki_7183-3190
Gender:
Color: White
| Cav | Col | Gauge |
|---|---|---|
| 1 | DG | 0.35 |
| 2 | DG | 0.35 |
| 3 | DG | 0.35 |
