X775 - s-rhd-sop7

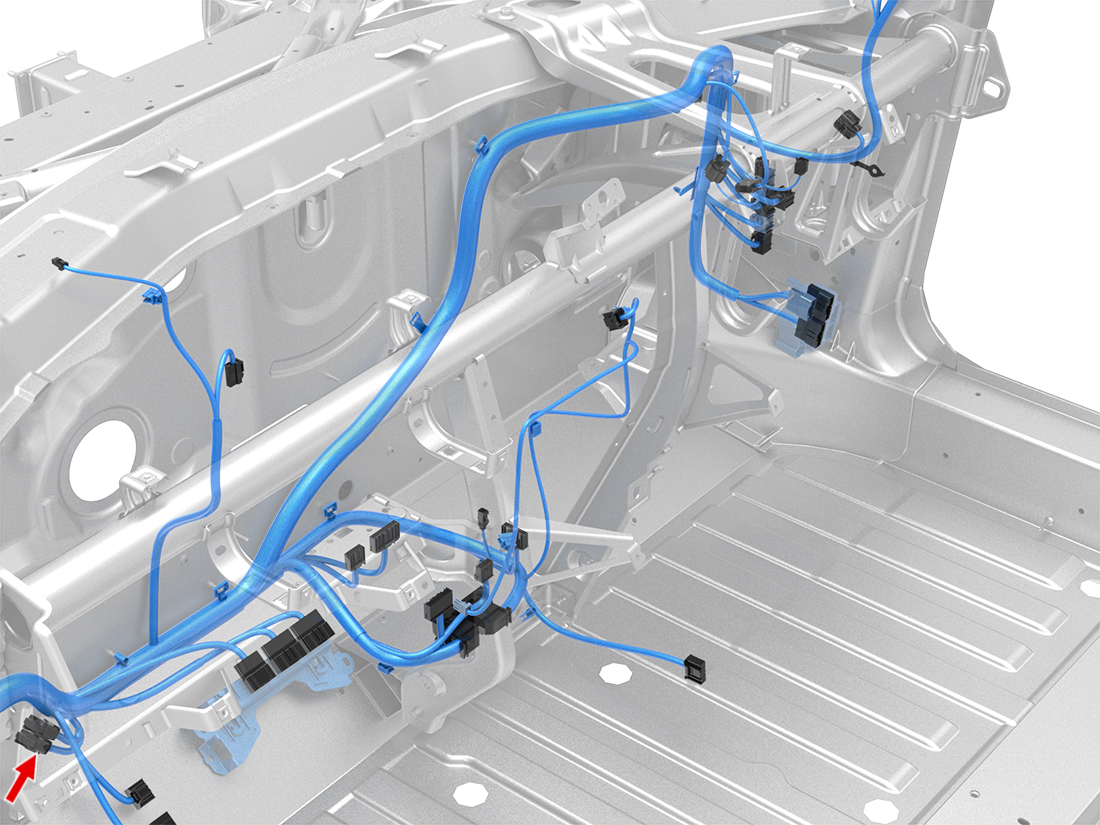

Location:

Connector Detail: sumitomo_6098-3926

Gender:

Color: BK

Cav	Col	Gauge
1	BN/WH	0.35
2	BN/WH	0.35
3	BN/WH	0.5
4	BN/WH	0.35
5	BN/WH	0.35
6	BN/WH	0.35
7	GN	0.5
8	GN	0.35
9	GN	0.35
10	GN	0.35
12	BN	0.35
13	BN	0.35
14	BN	0.5
15	BN	0.35
16	BN	0.35
17	BN	0.35
18	GN/WH	0.5
19	GN/WH	0.35
20	GN/WH	0.35
21	GN/WH	0.35
