X777 - s-rhd-sop7

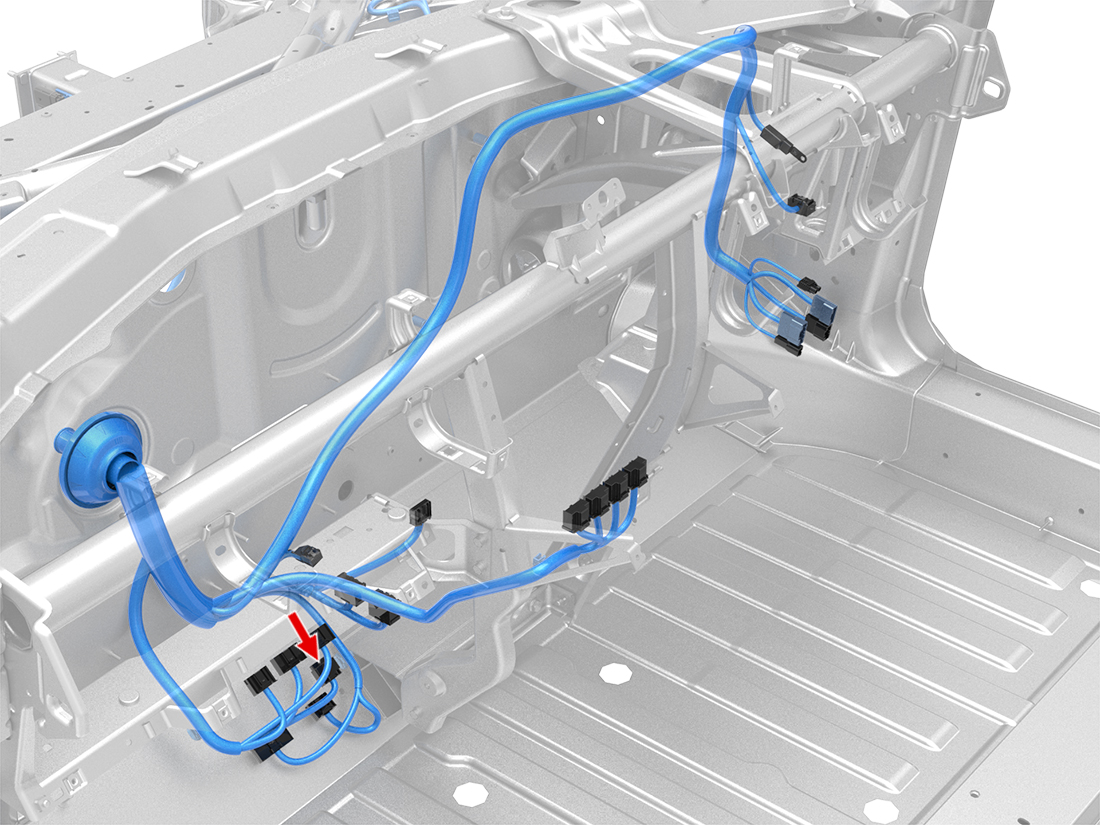

Location:
Connector Detail: sumitomo_6098-3927
Gender:
Color: BU
| Cav | Col | Gauge |
|---|---|---|
| 1 | GN/WH | 0.35 |
| 2 | GN/WH | 0.35 |
| 4 | GN/WH | 0.35 |
| 5 | BK/VT | 0.35 |
| 6 | BK/VT | 0.35 |
| 7 | BK/VT | 0.5 |
| 8 | RD/WH | 0.35 |
| 9 | RD/WH | 0.35 |
| 10 | RD/WH | 0.35 |
| 11 | RD/WH | 0.35 |
| 12 | GN | 0.35 |
| 13 | GN | 0.35 |
| 15 | GN | 0.35 |
| 16 | RD/BU | 0.35 |
| 17 | RD/BU | 0.35 |
| 18 | RD/BU | 0.35 |
| 19 | RD | 0.35 |
| 20 | RD | 0.35 |
| 21 | RD | 0.35 |
| 22 | RD | 0.35 |
