X908F - s-rhd-sop7

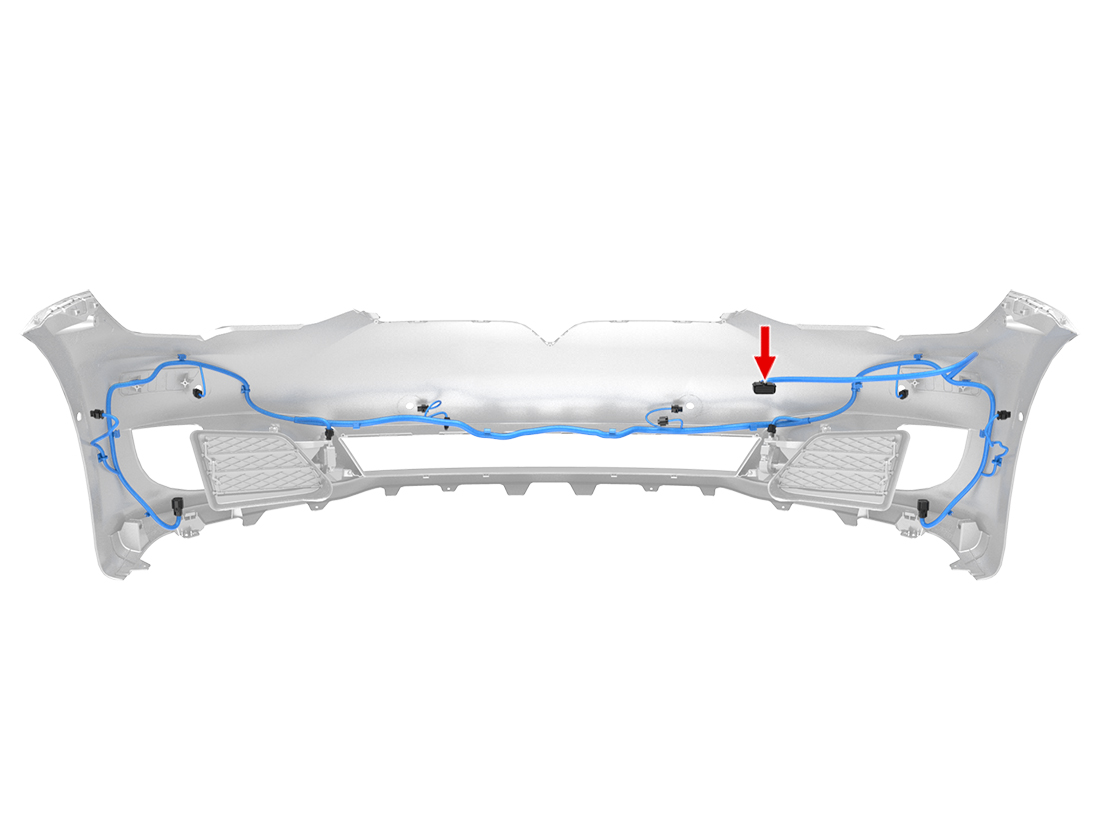

Location:
Connector Detail: molex_33472-2001
Gender:
Color: BK
| Cav | Col | Gauge |
|---|---|---|
| 1 | BN | 0.35 |
| 2 | RD/GN | 0.35 |
| 3 | WH | 0.35 |
| 4 | BN/WH | 0.35 |
| 5 | OG/BK | 0.35 |
| 6 | RD/VT | 0.35 |
| 7 | BN/WH | 0.5 |
| 8 | GY | 0.5 |
| 9 | BU/WH | 0.35 |
| 10 | RD/YE | 0.35 |
| 11 | RD/BU | 0.5 |
| 12 | GN/WH | 0.35 |
| 13 | BU | 0.35 |
| 14 | YE | 0.35 |
| 16 | GN | 0.35 |
| 17 | BU/WH | 0.35 |
| 18 | RD/WH | 0.35 |
| 19 | GN/RD | 0.35 |
| 20 | BK | 0.75 |
