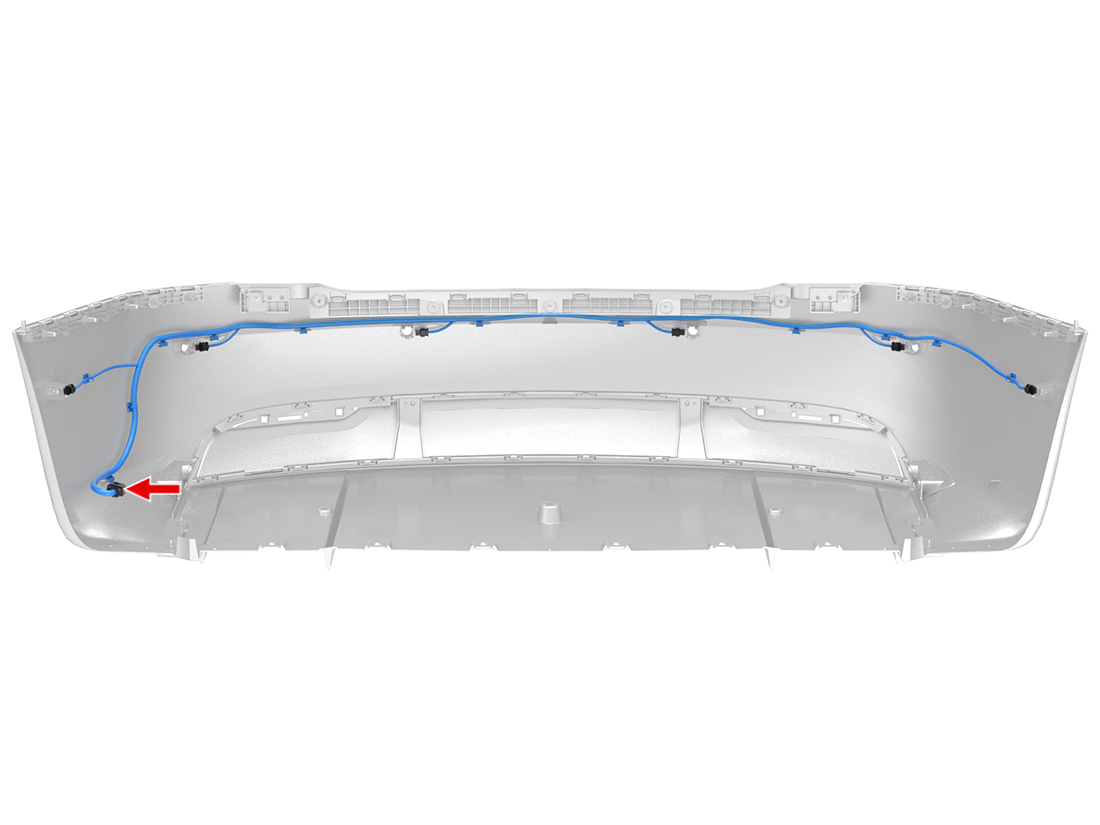

X909F - s-rhd-sop7
Location:
Connector Detail: molex_33472-1201
Gender:
Color: BK
| Cav | Col | Gauge |
|---|---|---|
| 1 | RD/YE | 0.5 |
| 2 | BK | 0.5 |
| 3 | VT/WH | 0.5 |
| 4 | VT | 0.5 |
| 5 | GN/WH | 0.35 |
| 6 | RD/WH | 0.35 |
| 7 | OG | 0.35 |
| 8 | WH | 0.35 |
| 9 | YE/WH | 0.35 |
| 10 | BK/WH | 0.35 |
| 11 | BU/WH | 0.35 |
| 12 | BN | 0.35 |
