X922M - s-rhd-sop7

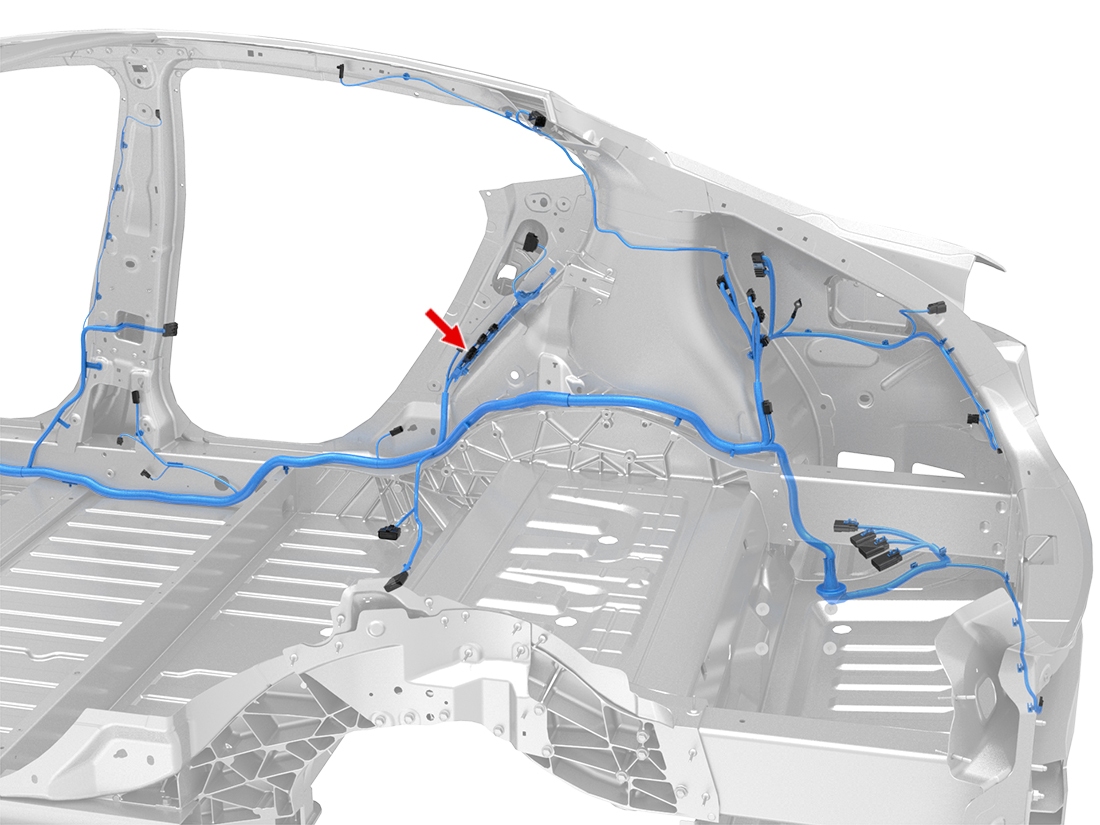

Location:

Connector Detail: sumitomo_6098-5594

Gender:

Color: WH

Cav	Col	Gauge
1	BU	0.75
2	VT	0.75
3	GY/WH	0.35
4	WH/BK	0.35
5	BN	0.35
6	OG/BK	0.35
8	VT/WH	0.35
11	GN	0.75
12	BK	0.75
13	GY	0.35
14	BN/WH	0.35
15	OG	0.35
16	WH	0.35
