X928F - s-rhd-sop7

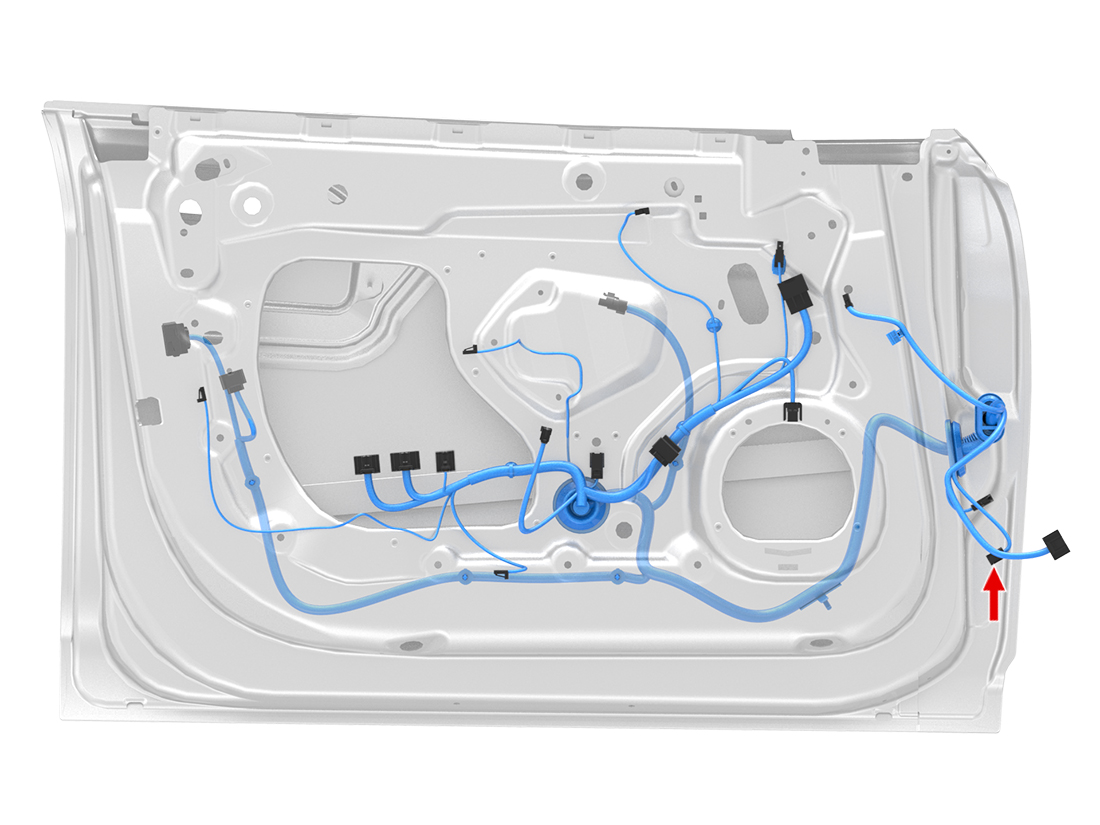

Location:
Connector Detail: sumitomo_6098-3909
Gender:
Color: WH
| Cav | Col | Gauge |
|---|---|---|
| 1 | DB/LB | 0.35 |
| 2 | TN/BK | 0.35 |
| 3 | VT/GY | 0.35 |
| 4 | TN | 0.35 |
| 6 | GY | 0.35 |
| 7 | DB/GY | 0.35 |
| 8 | TN/DB | 0.35 |
| 9 | LG/VT | 0.35 |
