X949M - s-rhd-sop7

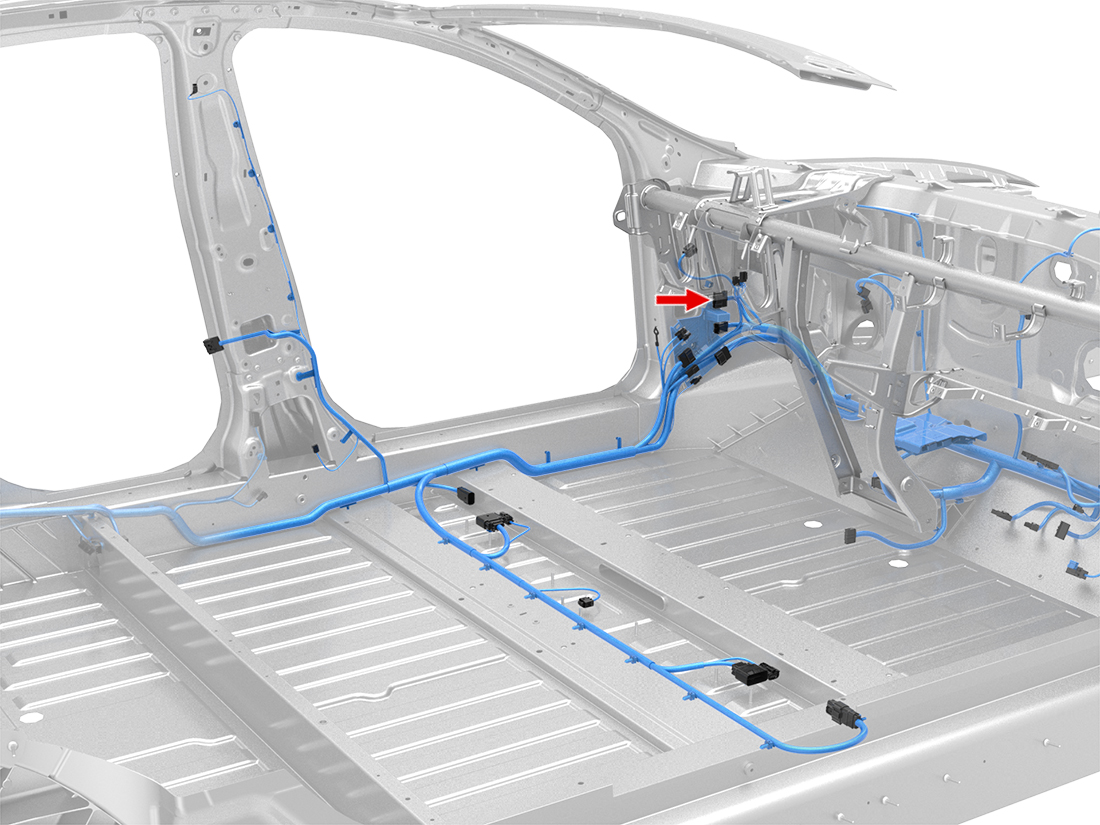

Location:
Connector Detail: yazaki_7286-1918
Gender: UNSPEC
Color: WH
| Cav | Col | Gauge |
|---|---|---|
| 2 | YE/WH | 0.5 |
| 3 | BN | 0.5 |
| 4 | WH/BU | 0.5 |
| 5 | RD/BU | 0.5 |
| 6 | OG/BK | 0.5 |
| 7 | VT/WH | 0.35 |
| 8 | VT | 0.35 |
| 12 | RD/BK | 0.5 |
| 13 | OG/BK | 0.5 |
| 14 | YE/WH | 0.35 |
| 18 | RD/GY | 0.5 |
| 19 | BK/GY | 0.5 |
| 20 | BN/WH | 0.35 |
| 21 | BN | 0.35 |
| 24 | VT/WH | 0.5 |
| 25 | VT | 0.5 |
