X968F - s-rhd-sop7

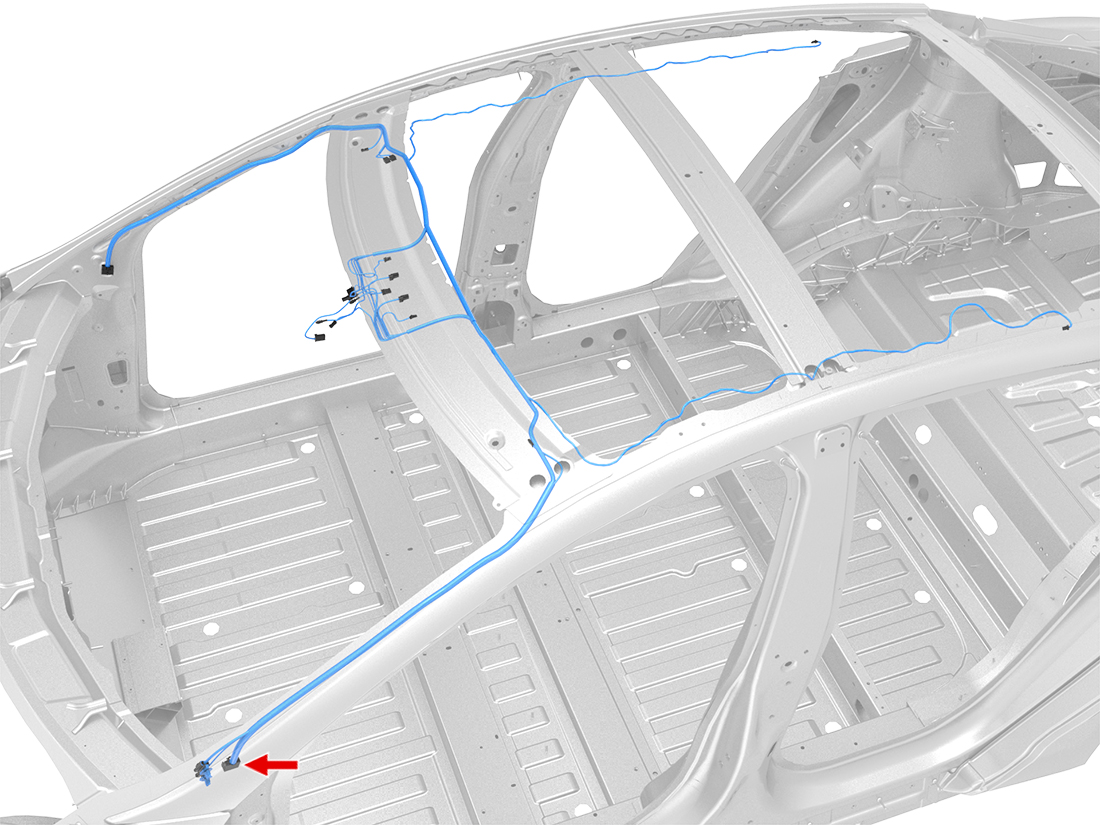

Location:
Connector Detail: yazaki_7283-6388-40
Gender:
Color: LightGray
| Cav | Col | Gauge |
|---|---|---|
| 2 | WH | 0.35 |
| 3 | WH/BK | 0.35 |
| 4 | SH | 5.01 |
| 5 | WH/DG | 0.35 |
| 5 | WH/DG | 0.35 |
| 6 | DG | 0.35 |
| 6 | DG | 0.35 |
| 7 | RD/WH | 0.5 |
| 8 | LG/WH | 0.35 |
| 9 | VT/GY | 0.35 |
| 12 | TN | 0.35 |
| 13 | TN/BK | 0.35 |
| 14 | SH | 5.01 |
| 15 | LB | 0.5 |
| 16 | GY | 0.35 |
| 17 | LG/RD | 0.35 |
| 18 | BN | 0.5 |
| 18 | BN | 0.5 |
| 19 | GY | 0.35 |
