X970M - s-rhd-sop7

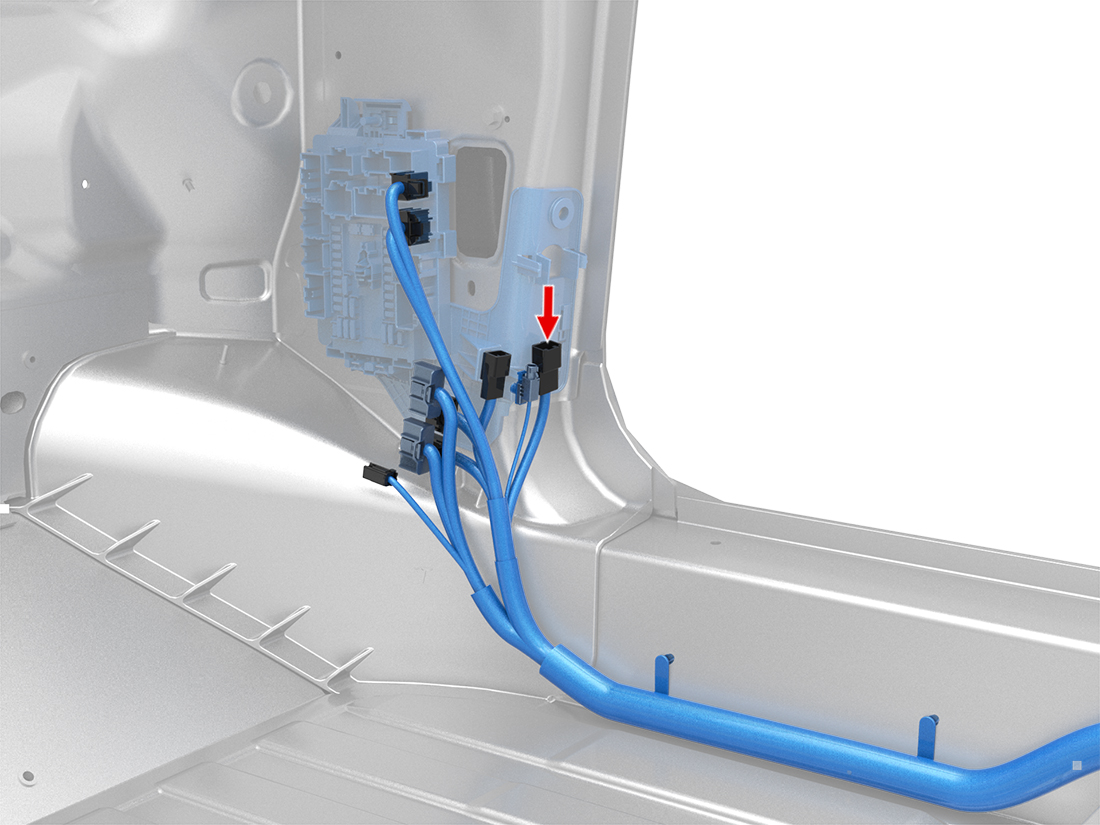

Location:
Connector Detail: sumitomo_6098-5691
Gender:
Color: GY
| Cav | Col | Gauge |
|---|---|---|
| 3 | OG | 2 |
| 4 | VT | 2 |
| 5 | BU | 0.75 |
| 6 | VT | 0.75 |
| 7 | GN | 0.75 |
| 8 | BK | 0.75 |
2012-2020 Model S Connector Reference
