X021 - s-rhd-sop8

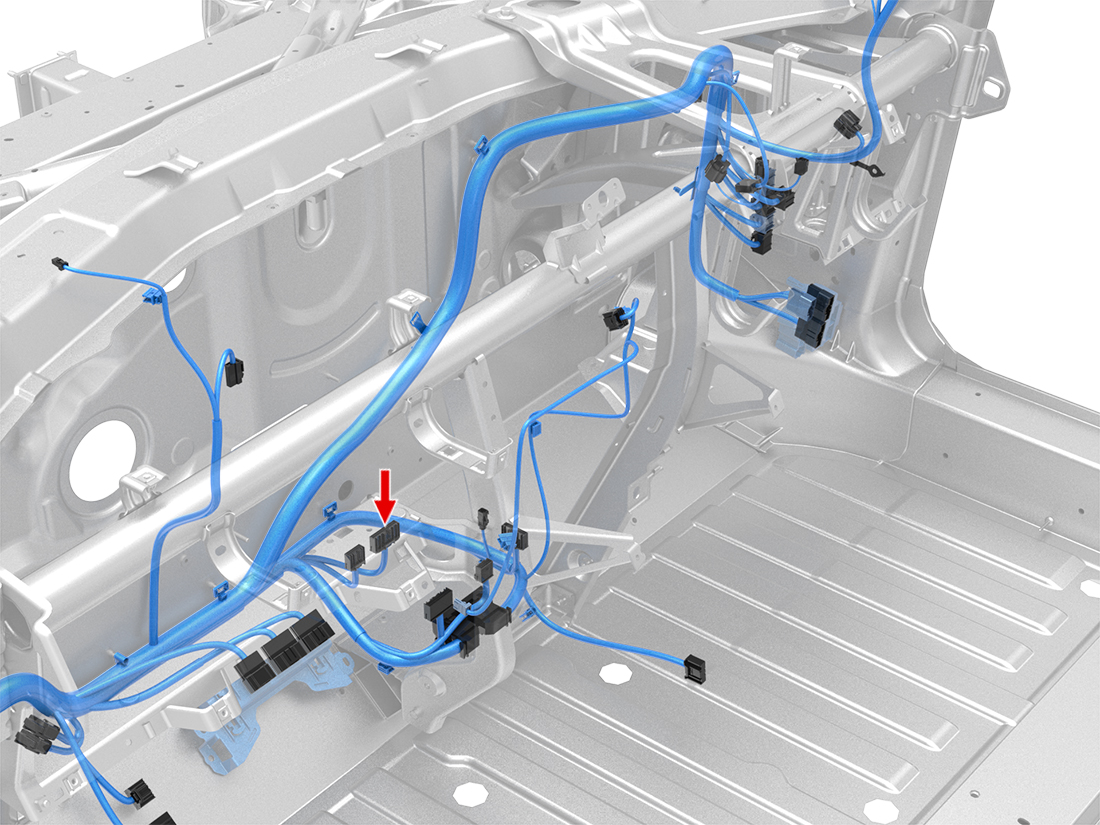

Location:
Connector Detail: jae_mx34036sf1
Gender:
Color: Gray
| Cav | Col | Gauge |
|---|---|---|
| 1 | WH/RD | 0.35 |
| 2 | VT | 0.35 |
| 3 | RD/GN | 0.35 |
| 4 | BU | 0.35 |
| 5 | WH | 0.35 |
| 6 | GY/WH | 0.35 |
| 7 | BK/VT | 0.5 |
| 8 | RD/VT | 0.5 |
| 11 | OG | 0.35 |
| 12 | RD/GY | 0.35 |
| 14 | BN/WH | 0.35 |
| 15 | RD/BK | 0.5 |
| 17 | VT/WH | 0.35 |
| 19 | RD/BU | 0.35 |
| 22 | WH/BK | 0.5 |
| 23 | RD | 0.5 |
| 24 | YE/WH | 0.35 |
| 25 | RD/BK | 0.35 |
| 26 | GY | 0.35 |
| 27 | GN/WH | 0.35 |
| 30 | RD/YE | 0.35 |
| 32 | BN | 0.5 |
