X024 - s-rhd-sop8

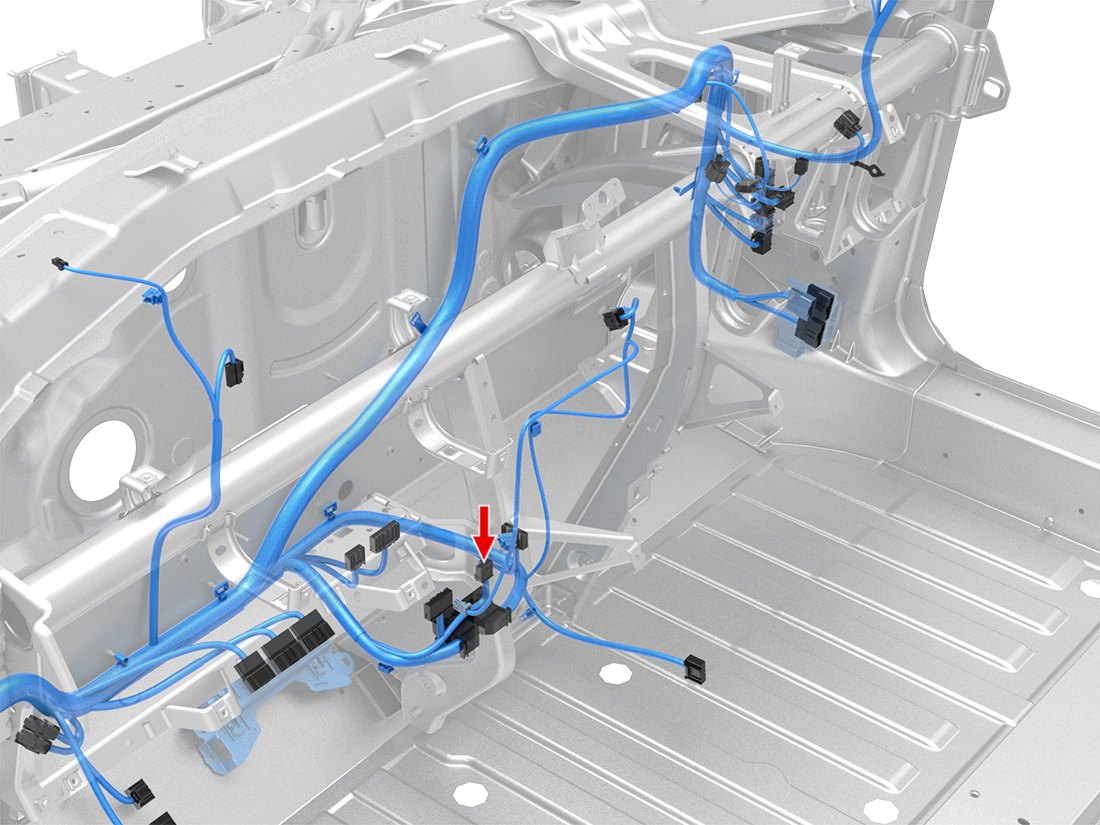

Location:
Connector Detail: jae_mx34016sf1
Gender:
Color: Gray
| Cav | Col | Gauge |
|---|---|---|
| 2 | RD/BK | 0.35 |
| 3 | WH/BU | 0.35 |
| 4 | YE | 0.35 |
| 5 | BN | 0.5 |
| 6 | OG | 0.35 |
| 7 | RD/VT | 0.35 |
| 8 | WH/BK | 0.35 |
| 9 | RD/GY | 0.35 |
| 10 | RD/WH | 0.35 |
| 11 | GY | 0.35 |
| 12 | WH | 0.35 |
| 13 | BU | 0.35 |
| 15 | RD/GN | 0.35 |
| 16 | GY/WH | 0.35 |
