X026 - s-rhd-sop8

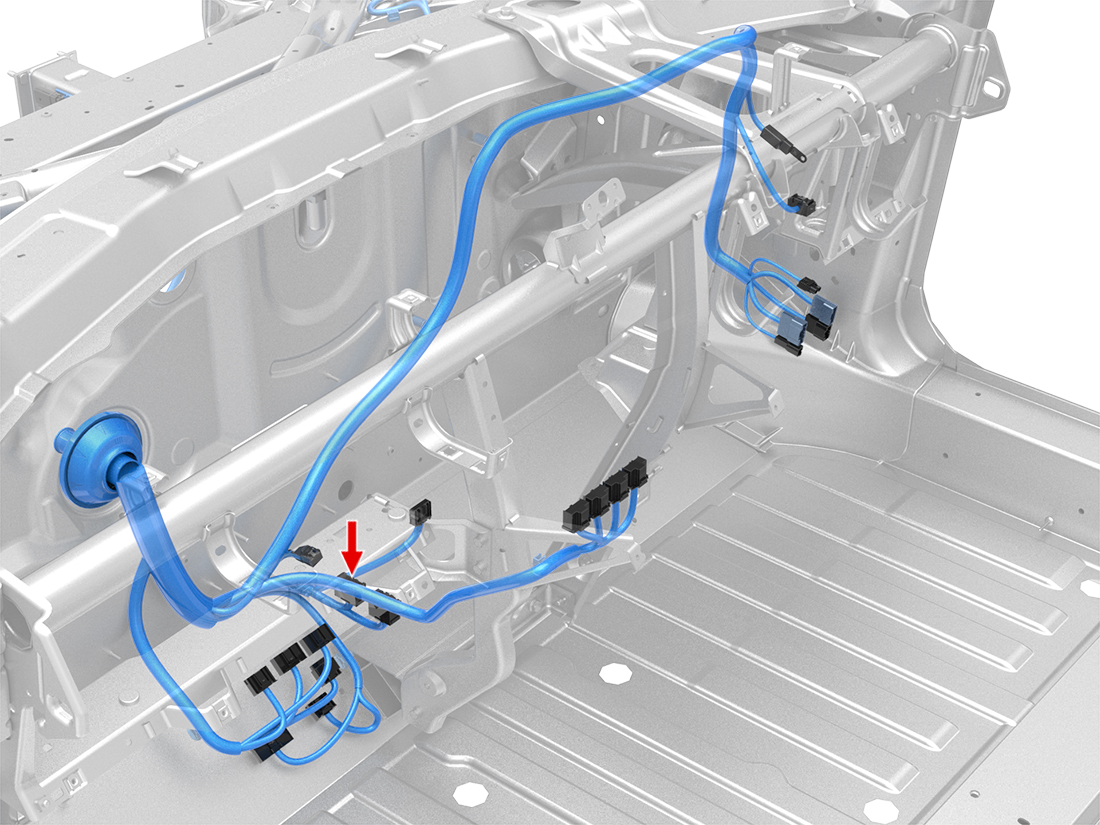

Location:
Connector Detail: yazaki_7283-6467-40
Gender:
Color: LightGray
| Cav | Col | Gauge |
|---|---|---|
| 1 | BK | 2 |
| 2 | RD/BK | 1 |
| 4 | RD/GY | 1 |
| 5 | BU | 0.5 |
| 6 | RD/WH | 2 |
