X027 - s-rhd-sop8

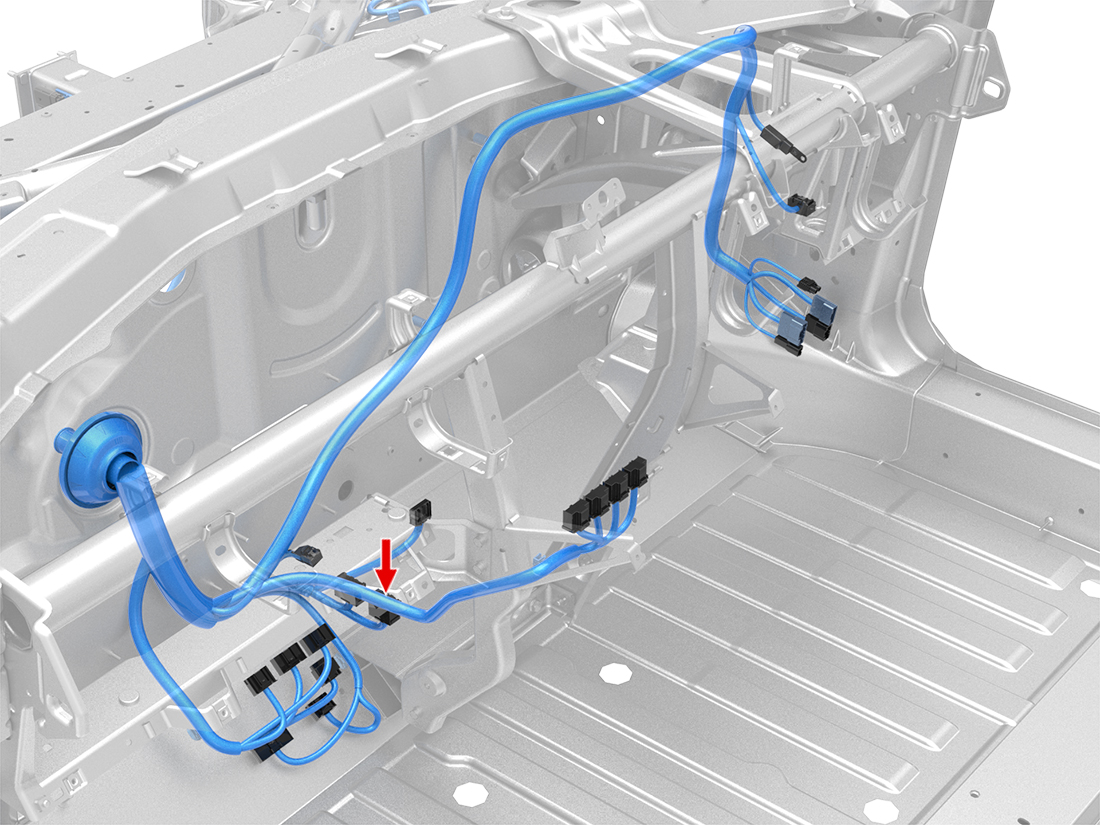

Location:
Connector Detail: yazaki_7283-3740-40
Gender:
Color: LightGray
| Cav | Col | Gauge |
|---|---|---|
| 1 | RD/GN | 2 |
| 2 | BK | 2 |
| 3 | BU/WH | 2 |
| 4 | GY/WH | 1.5 |
| 5 | RD/VT | 2 |
| 6 | RD/WH | 1 |
