X044 - s-rhd-sop8

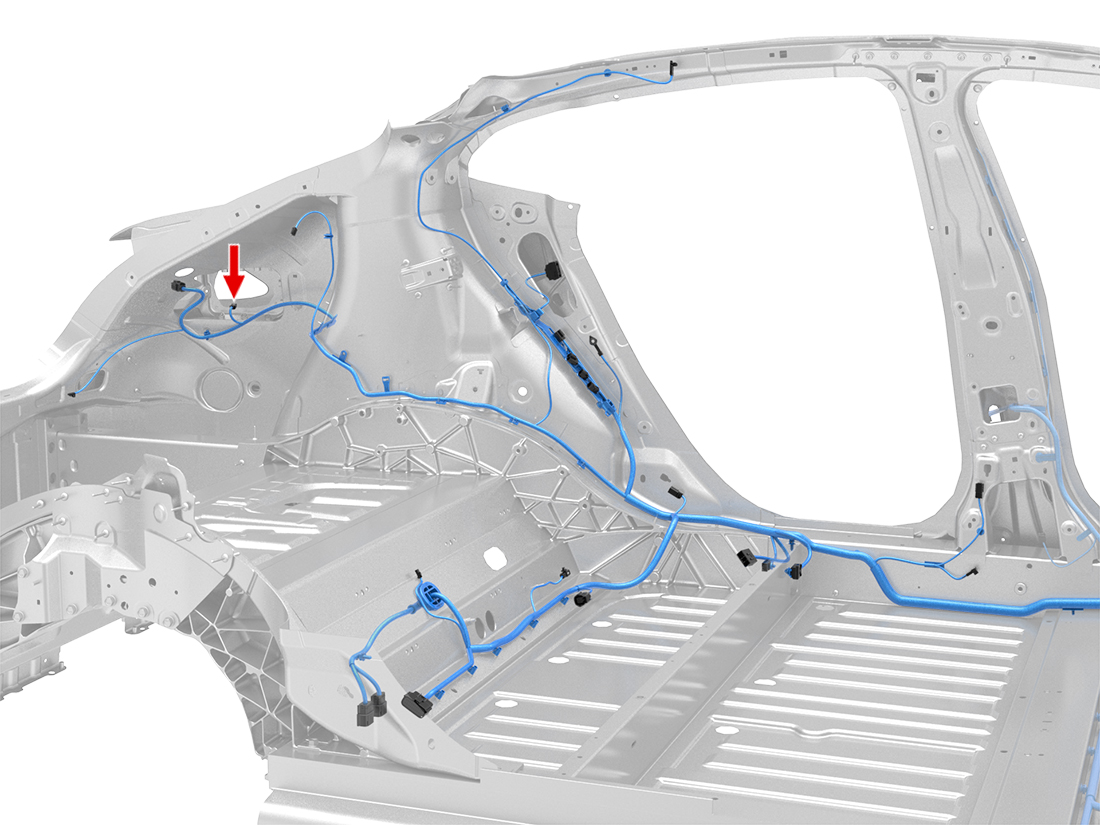

Location:
Connector Detail: amp_185311-1
Gender:
Color: BK
| Cav | Col | Gauge |
|---|---|---|
| 1 | RD/BU | 0.5 |
| 2 | BU | 0.35 |
| 3 | RD/WH | 0.35 |
| 4 | BK | 0.5 |
| 6 | RD | 0.35 |
2012-2020 Model S Connector Reference
