X115 - s-rhd-sop8

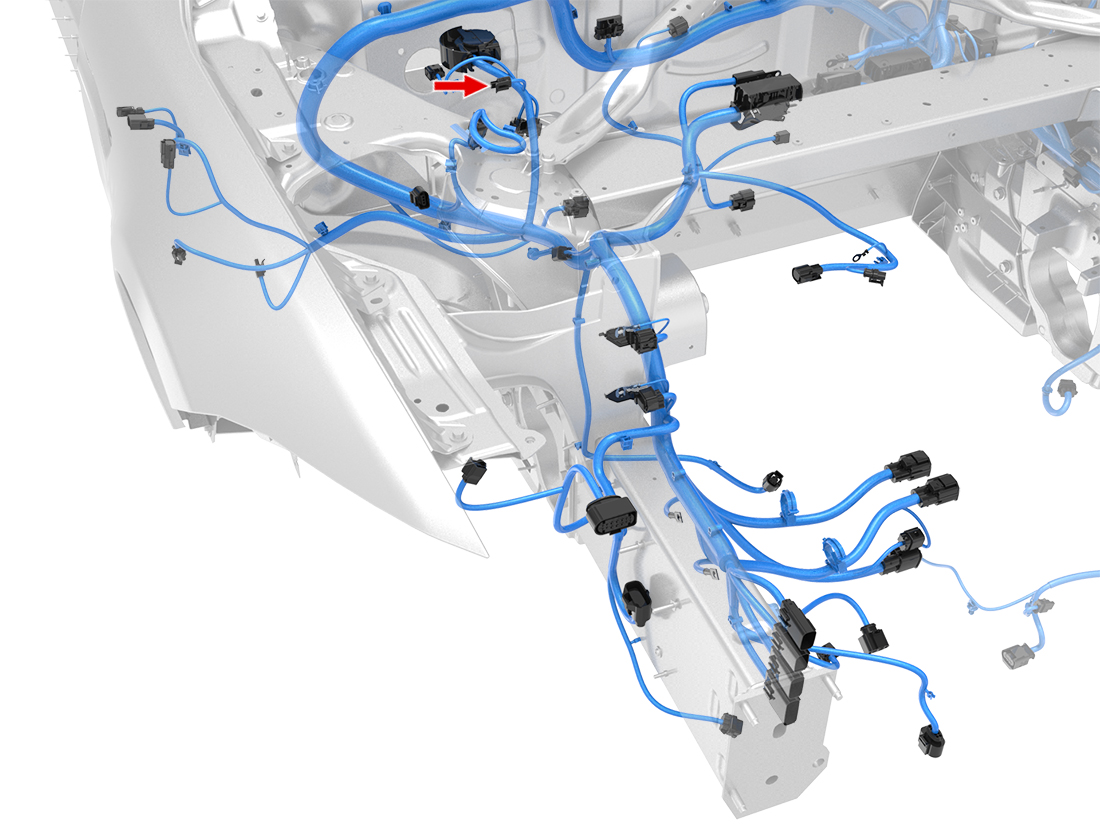

Location:
Connector Detail: delphi_12162193
Gender:
Color: BK
| Cav | Col | Gauge |
|---|---|---|
| A | BK | 0.5 |
| B | WH/BK | 0.5 |
2012-2020 Model S Connector Reference
